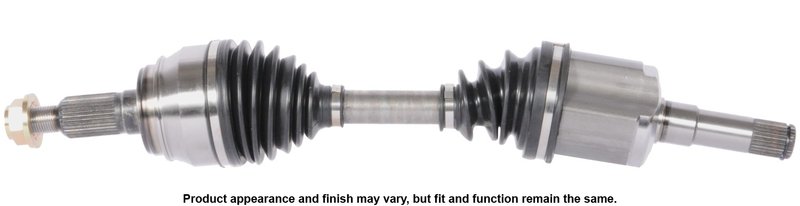

Cardone 66-1625 CV Axle Assembly - Front Right
| Brand | Cardone 66-1625 |
|---|---|
| Position | Front Right |
| ABS Ring Included | No |
| ABS Ring Tooth Count | 0 |
| Axle Nut Locking Type | Self-Lock |
| Compressed Length (in) | 24.51 |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 27 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 33 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Product line | CV Axle Assembly |
| Fits | Cadillac · 7 vehicles |
OE performance. Engineered to meet or exceed original equipment standards.
Boots resist cracking. Additional bellows help reduce stress and ozone damage.
Vibration-free operation. Each shaft is individually verified for straightness.
Cross-references Cadillac 22744460 for the same application. See all 1.
Cardone CV Axle Assembly for Cadillac XTS
Cardone CV Axle Assembly 66-1625 is a new front right driveline replacement for select Cadillac XTS models. It is built with engineering focused on OE-level fit and vibration control, making it a direct option for a 2013-2019 Cadillac XTS front right CV axle replacement.
Key Features
- Fits 2013-2019 Cadillac XTS, front right
- New axle retaining nut included for service convenience
- Self-lock axle nut locking type
- Splined input shaft with 27 splines
- Splined output shaft with 33 splines
- Compressed length: 24.51 in.
- No ABS ring included
- Neoprene boot design with added bellows where needed to reduce stress and cracking
- Boot clamps are pneumatically crimped for a secure seal
- High-temperature, high-torque grease for driveline service
- Shafts are individually verified for straightness to help reduce vibration
Product Details
Cardone’s CV axle engineering process is built around common failure points found in original drive axles. For this application, the axle is designed to deliver smooth operation and consistent driveline performance in the Cadillac XTS. The part number 66-1625 is a practical replacement when the original front right axle shows wear, boot damage, or joint noise. This part cross-references Cadillac OE number 22744460 for the same application.
Common Problems This Part Can Address
- Clicking or snapping during turns
- Grease leakage from a torn CV boot
- Front-end vibration during acceleration
- Grinding noise from a worn CV joint
- Axle-related wobble or driveline shudder
Installation Notes
Fits 2013-2019 Cadillac XTS, front right. Replace the axle retaining nut rather than reusing a prevailing-torque lock nut. Do not let the axle hang unsupported during service, and torque the retaining nut to the manufacturer specification with a torque wrench. If the vehicle uses transaxle seals, inspect them during axle replacement and replace worn seals to help prevent leaks. If the ABS light is on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.
Quality Assurance
Cardone designs its CV drive axles around known failure causes such as boot cracking, joint contamination, and shaft runout. Each shaft is checked for straightness to support vibration-free operation, and the axle is assembled with durable boot and grease materials selected for driveline service. Part number 66-1625 is a new CV axle assembly for the Cadillac XTS front right position.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Cadillac | XTS | Front Right | CV Axle Assembly |
| 2018 | Cadillac | XTS | Front Right | CV Axle Assembly |
| 2017 | Cadillac | XTS | Front Right | CV Axle Assembly |
| 2016 | Cadillac | XTS | Front Right | CV Axle Assembly |
| 2015 | Cadillac | XTS | Front Right | CV Axle Assembly |
| 2014 | Cadillac | XTS | Front Right | CV Axle Assembly |
| 2013 | Cadillac | XTS | Front Right | CV Axle Assembly |
