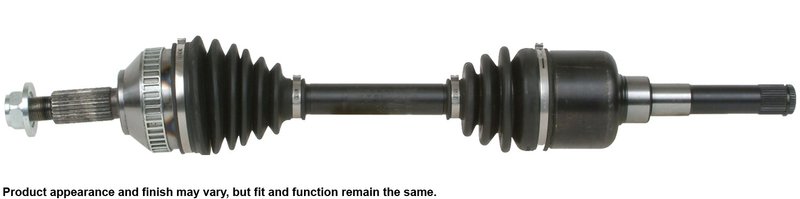

Cardone 66-2059 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Front Left Applications

The Cardone 66-2059 CV axle assembly is a new front left driveline replacement built for 1995-2000 Ford Contour, 1995-2000 Mercury Mystique, and 1999-2002 Mercury Cougar applications. It is engineered to address common CV failure points with updated boot design, verified shaft straightness, and OE-style fitment for smooth driveline operation.

Key Features

• Fits front left applications on Ford Contour, Mercury Mystique, and Mercury Cougar
• Cardone part number 66-2059 for direct replacement lookup
• ABS ring included with 44-tooth count
• Self-lock axle nut style with spindle nut included
• Compressed length: 26.125 in.
• Input shaft: 35 splines; output shaft: 27 splines
• Splined connection style on both ends for proper engagement
• Neoprene boot design with added bellows where needed to reduce stress and ozone cracking
• High-temperature, high-torque grease for durable joint operation
• Boot clamps are pneumatically crimped for a secure seal
• Transmission seal diameter is precision-machined after heat treatment for consistent seal life

Product Details

Cardone’s CV axle assembly line is built around testing and engineering practices developed to reduce repeat failure. For this application, the axle shaft is individually checked for straightness to help maintain vibration-free performance at speed, while the boot and joint materials are selected to handle the demands of daily driving. If you are replacing a worn front left axle on a Ford Contour, Mercury Mystique, or Mercury Cougar, Cardone 66-2059 provides a direct-fit driveline solution with the correct spline counts, ABS ring, and spindle nut details.

This part cross-references Ford and Mercury OE numbers, including F5RZ3V427EARM and F8RZ3B437DD, for the same application.

Common Problems This Axle Can Address

• Clicking or snapping noises during hard turns and acceleration
• Grease leakage around the CV boot or suspension area
• Front-end vibration caused by a bent or out-of-round axle shaft
• ABS warning light concerns after axle replacement when the sensor ring is not correct
• Grinding or clunking from a worn outer or inner CV joint

Installation Notes

• Fits 1995-2000 Ford Contour, front left
• Fits 1995-2000 Mercury Mystique, front left
• Fits 1999-2002 Mercury Cougar, front left
• Do not let the axle hang unsupported during service; this can damage the inner joint
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications
• Do not reuse a prevailing-torque lock nut; install the new nut supplied with the axle
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and wiring for damage

Quality Assurance

Cardone uses application-specific engineering, boot design improvements, and 100% shaft run-out inspection to help deliver consistent CV axle performance. The brand’s remanufacturing and testing process is focused on reducing the causes of repeat axle failure and supporting reliable operation in the intended vehicle applications.
