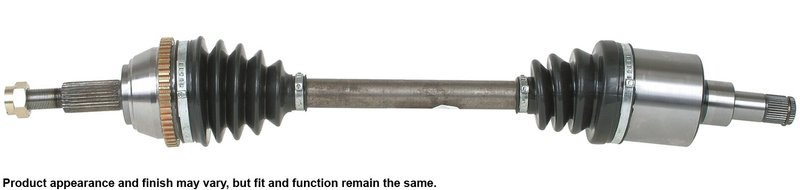

Cardone 66-2069 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Windstar

Restore smooth power delivery with this Cardone CV axle assembly, engineered for front right service on the 1995-1998 Ford Windstar. Part number 66-2069 is built with attention to axle straightness, boot durability, and seal integrity for vibration-free operation at speed.

Cardone’s CV axle engineering focuses on the common failure points found in original drive axles, including boot cracking, grease loss, and joint wear. For Ford Windstar front right replacement needs, 66-2069 is a direct-fit driveline solution designed around OE-style performance requirements.

Key Features

• Fits 1995-1998 Ford Windstar, front right
• Cardone CV Axle Assembly, part number 66-2069
• ABS ring included with 50 teeth
• Self-lock axle nut style with spindle nut included
• Compressed length: 28.25 in.
• 35-spline input shaft and 26-spline output shaft
• Neoprene boot design with added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease for driveline service
• Shafts are individually verified for straightness to help reduce vibration

Detailed Description

This CV axle assembly is built for the front right position on the 1995, 1996, 1997, and 1998 Ford Windstar. It uses a splined connection design with a 35-spline input and 26-spline output, along with an integrated ABS ring to support proper wheel speed signal operation. The axle nut locking type is self-lock, and the spindle nut thread size is M20 x 1.5.

Cardone’s CV Drive Axle line is engineered to address the causes of repeat failure. That includes boot construction that resists cracking, precision-machined seal surfaces for longer seal life, and runout verification to help maintain smooth operation. This part cross-references Ford F58Z3B436A and F68Z3B436BA for the same application.

Common Problems This Part Can Address

• Clicking or snapping noise during turns
• Grease on the chassis or suspension from a torn outer boot
• Front-end vibration under acceleration
• ABS warning light caused by a damaged sensor ring or axle-mounted sensor area
• Grinding or wobble related to a worn outer CV joint

Installation Notes and Tips

• Fits 1995-1998 Ford Windstar, front right.
• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench for the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; install the supplied new axle nut.
• Replace transaxle seals when servicing CV drive axles to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone designs and tests CV drive axles with OE-level performance targets in mind, using straightness verification and boot construction improvements to help reduce common failure modes. Part number 66-2069 is a new CV axle assembly for dependable driveline service on the Ford Windstar.
