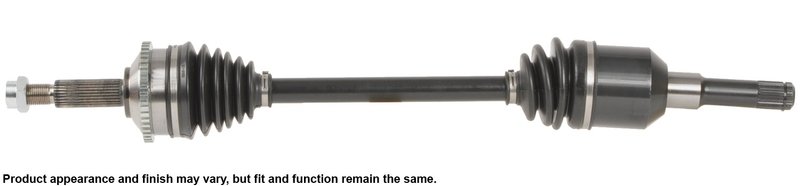

Cardone 66-2150 CV Axle Assembly - Rear Right
| Brand | Cardone 66-2150 |
|---|---|
| Position | Rear Right |
| ABS Ring Included | Yes |
| ABS Ring Tooth Count | 46 |
| Axle Nut Locking Type | Self-lock |
| Compressed Length (in) | 32.7165354330709 |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 28 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 28 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Product line | CV Axle Assembly |
| Fits | Lincoln · 3 vehicles |
OE-level performance. Engineered to meet or exceed original equipment standards.
Boots resist cracking. Neoprene design adds bellows to fight stress and ozone damage.
Vibration-free operation. Each shaft is individually verified for straightness.
Cross-references Lincoln XW4Z4K138AA, Lincoln XW4Z4K138BB and Lincoln XW4Z4K138CC for the same application. See all 4.
Cardone CV Axle Assembly for Lincoln LS
Cardone 66-2150 is a new rear right CV axle assembly for the 2000-2002 Lincoln LS. Built for direct replacement service, it combines a splined 28-tooth input and output connection with an ABS ring and self-lock axle nut for a straightforward driveline repair.
For Lincoln LS rear axle service, this Cardone CV axle assembly is engineered with attention to straightness, boot durability, and seal integrity to support smooth operation at speed. The part number 66-2150 is also listed under Lincoln interchange references for the same application.
Key Features
- Fits 2000-2002 Lincoln LS, rear right
- Cardone CV Axle Assembly, part number 66-2150
- New axle assembly with complete axle and instruction sheet
- ABS ring included with 46 teeth
- Self-lock axle nut and spindle nut included
- Splined 28-tooth input shaft and 28-tooth output shaft
- Neoprene boot design with added bellows where needed to resist cracking and stress
- Boot clamps are pneumatically crimped for a secure seal
- High-temperature, high-torque grease for driveline service
Product Details
Cardone’s CV axle engineering focuses on the common causes of axle failure, including boot cracking, grease loss, contamination, and vibration. The shaft is individually verified for straightness to help maintain vibration-free performance, while the precision-machined transmission seal diameter supports proper sealing and long service life. This makes 66-2150 a practical replacement for Lincoln LS rear axle repair when the original unit is worn, noisy, or leaking.
This part cross-references Lincoln OE numbers XW4Z4K138AA and XW4Z4K138BB for the same application.
Common Problems This Part Can Address
- Clicking or snapping noise during turns
- Grease on the chassis or suspension from a torn boot
- Vibration during acceleration
- Wobble or shudder from a worn rear axle assembly
- ABS warning light caused by a damaged sensor ring or related axle-area damage
Installation Notes and Tips
- Fits 2000-2002 Lincoln LS, rear right.
- Do not let the CV axle hang unsupported during service.
- Use a torque wrench on the retaining nut and follow manufacturer torque specifications.
- Do not reuse a prevailing-torque lock nut; replace it with the supplied nut.
- Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
- Inspect nearby ABS sensor wiring and the sensor ring during installation.
Quality Assurance
Cardone builds this CV axle assembly using engineering and testing practices developed from CV driveline failure analysis. Shafts are checked for straightness, and the boot and seal details are designed to support reliable driveline operation in the Lincoln LS rear right position.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Lincoln | LS | Rear Right | CV Axle Assembly |
| 2001 | Lincoln | LS | Rear Right | CV Axle Assembly |
| 2000 | Lincoln | LS | Rear Right | CV Axle Assembly |
