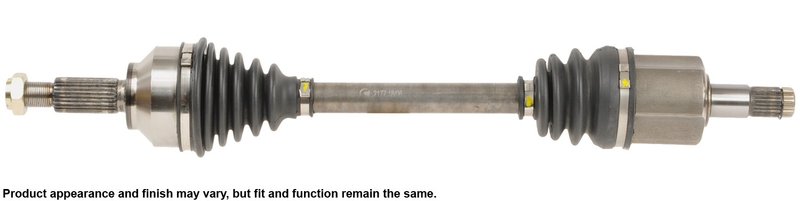

Cardone 66-2177 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Jaguar X-Type

Cardone 66-2177 is a new CV axle assembly engineered for the front right position on 2002-2008 Jaguar X-Type models. Built for direct replacement service, it addresses common driveline wear points with a precision-machined shaft and boot design focused on smooth operation and seal life.

Key Features

• Fits 2002-2008 Jaguar X-Type, front right
• Cardone CV Axle Assembly, part number 66-2177
• New axle retaining nut included for service convenience
• Self-lock axle nut locking type
• 23-spline input shaft and 27-spline output shaft
• Compressed length: 24.213 in.
• Neoprene boots with added bellows where needed to reduce stress and cracking
• Boot clamps are pneumatically crimped for a secure boot-to-housing seal
• High-temperature, high-torque grease for driveline service
• Shafts are individually checked for straightness to reduce vibration

Product Details

Cardone 66-2177 is part of Cardone’s CV Axle Assembly line, which focuses on OE-style driveline replacement with attention to common failure points. For the Jaguar X-Type front right application, the axle is built with a splined 23-tooth input and 27-tooth output connection, a self-lock nut style, and a precision-machined transmission seal diameter after heat treatment to support proper sealing. This part cross-references Jaguar C2S29729 for the same application.

For drivers searching for a front right CV axle for 2002-2008 Jaguar X-Type, this assembly is a direct-fit replacement option for restoring driveline function and reducing vibration, clicking, or boot-related grease loss. The Cardone 66-2177 designation is also useful when verifying the correct replacement before service.

Common Issues This Part Can Address

• Clicking or snapping noise during turns
• Grease on the chassis or suspension from a torn outer boot
• Vibration during acceleration from a worn or bent axle shaft
• Grinding or binding from a damaged CV joint
• Driveline noise caused by worn axle components

Installation Notes and Tips

• Fits 2002-2008 Jaguar X-Type, front right
• Do not let the CV axle hang unsupported during service
• Use a torque wrench on the retaining nut and follow manufacturer torque specifications
• Do not reuse a prevailing-torque lock nut; install the supplied new nut
• Replace transaxle seals when servicing CV drive axle assemblies to help prevent leaks
• If the ABS warning light appears after installation, inspect the sensor ring, sensor, and nearby wiring for damage

Quality Assurance

Cardone engineers and tests CV drive axles to meet or exceed OE performance targets, with 100% run-out inspection on shafts used in remanufacturing to help prevent vibration. The brand also designs boot construction and sealing details to address common causes of repeat failure in CV axle service.
