OE Quality
60-Day Returns
Cardone

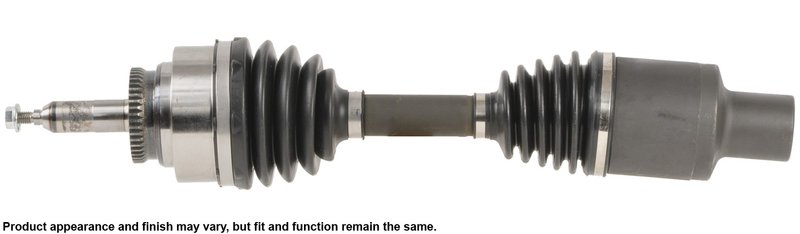

CV Axle AssemblyCardone 66-2192HD CV Axle Assembly - Front Right
| Brand | Cardone 66-2192HD |
|---|---|
| Position | Front Right |
| ABS Ring Included | Yes |
| Axle Nut Locking Type | Self-lock |
| Compressed Length (in) | 22.007874015748 |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 31 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 45 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Product line | CV Axle Assembly |
| Fits | Ford and Lincoln · 58 vehicles |
OE-level performance. Engineered to meet or exceed original equipment standards.
Severe-duty design. HD suffix units include a thermoplastic boot for added durability.
Vibration-free operation. Each shaft is individually verified for straightness.
Cross-references Ford AL1Z3A428B and Lincoln 7L1Z3B436A for the same application. See all 2.
$134.38Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Assembly options
Cardone CV Axle Assembly for Front Right Applications
Restore driveline performance with the Cardone 66-2192HD CV Axle Assembly. This new front right axle is built for 2007-2015 Ford Expedition, 2007-2015 Lincoln Navigator, and 2009-2014 Ford F-150 applications, with fitment matched to the listed vehicle configurations.
Cardone engineers its CV Drive Axle line to address common failure points found in original units. The 66-2192HD includes a self-lock axle nut, ABS ring, and a precision-machined transmission seal diameter for proper sealing and dependable operation.
Key Features
- Fits 2007-2015 Ford Expedition, front right
- Fits 2007-2015 Lincoln Navigator, front right
- Fits 2009-2014 Ford F-150, front right
- ABS ring included for vehicles equipped with ABS
- Self-lock axle nut and spindle nut included
- High-temperature grease supports demanding torque and heat conditions
- Boot clamps are pneumatically crimped for a secure boot-to-housing seal
- Neoprene boot design uses added bellows where needed to reduce stress and cracking
- Shafts are individually verified for straightness to help reduce vibration
- Compressed length: 22.007874015748 in
- Input shaft connection style: splined, 31 spline count
- Output shaft connection style: splined, 45 spline count
Product Details
The Cardone CV Axle Assembly line focuses on correcting the causes of repeat CV failure, including boot cracking, seal wear, and shaft runout. For severe-duty applications, HD-suffix part numbers use a thermoplastic outboard boot for added durability versus a traditional neoprene design. Part number 66-2192HD is a new driveline replacement for front right service on the Ford Expedition, Lincoln Navigator, and Ford F-150.
This part cross-references Ford AL1Z3A428B and Lincoln 7L1Z3B436A for the same application.
Common Problems This Part Can Help Address
- Clicking or snapping noises during hard turns and acceleration
- Grease on the chassis or suspension from a ruptured CV boot
- Front-end vibration caused by axle runout or shaft imbalance
- Grinding or binding from a worn outer or inner CV joint
- ABS warning light triggered by a damaged sensor ring or related axle-area component
Installation Notes
- Do not let the CV axle hang unsupported during service; this can damage the inner joint.
- Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification.
- Do not reuse a prevailing-torque lock nut; install the supplied new nut.
- Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
- Inspect the ABS sensor, wiring, and ring during installation to avoid speed signal issues.
- Height modifications such as lift kits void warranty on the listed Ford F-150 application.
Quality Assurance
Cardone uses engineering and testing methods developed from CV axle failure analysis to improve durability and fit. Shafts are checked for straightness, and the seal surface is precision-machined after heat treatment to support long seal life and vibration-free performance at speed.
This part fits 58 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2015 | Ford | Expedition | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2015 | Lincoln | Navigator | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2014 | Ford | Expedition | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2014 | Ford | F-150 | Platinum | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2014 | Ford | F-150 | Lariat | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2014 | Ford | F-150 | XL | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2014 | Ford | F-150 | Limited | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2014 | Ford | F-150 | XLT | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2014 | Ford | F-150 | FX4 | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2014 | Ford | F-150 | STX | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2014 | Ford | F-150 | King Ranch | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2014 | Ford | F-150 | Tremor | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2014 | Lincoln | Navigator | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2013 | Ford | Expedition | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2013 | Ford | F-150 | Platinum | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2013 | Ford | F-150 | Lariat | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2013 | Ford | F-150 | XL | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2013 | Ford | F-150 | Limited | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2013 | Ford | F-150 | XLT | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2013 | Ford | F-150 | FX4 | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2013 | Ford | F-150 | STX | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2013 | Ford | F-150 | King Ranch | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2013 | Lincoln | Navigator | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2012 | Ford | Expedition | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2012 | Ford | F-150 | Platinum | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2012 | Ford | F-150 | Lariat | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2012 | Ford | F-150 | XL | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2012 | Ford | F-150 | XLT | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2012 | Ford | F-150 | FX4 | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2012 | Ford | F-150 | STX | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2012 | Ford | F-150 | King Ranch | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2012 | Lincoln | Navigator | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2011 | Ford | Expedition | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2011 | Ford | F-150 | Platinum | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2011 | Ford | F-150 | Lariat | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2011 | Ford | F-150 | XL | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2011 | Ford | F-150 | XLT | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2011 | Ford | F-150 | FX4 | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2011 | Ford | F-150 | STX | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2011 | Ford | F-150 | King Ranch | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2011 | Ford | F-150 | Lariat Limited | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2011 | Lincoln | Navigator | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2010 | Ford | Expedition | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2010 | Ford | F-150 | Platinum | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2010 | Ford | F-150 | Lariat | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2010 | Ford | F-150 | XL | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2010 | Ford | F-150 | XLT | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2010 | Ford | F-150 | FX4 | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2010 | Ford | F-150 | STX | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2010 | Ford | F-150 | King Ranch | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2010 | Lincoln | Navigator | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2009 | Ford | Expedition | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2009 | Ford | F-150 | — | 4WD | Front Right | Fits standard vehicle fitment with optional heavy duty thermoplastic outboard boot; Height modifications (i.e. Lift Kits) will void warranty.; CV Axle Assembly |
| 2009 | Lincoln | Navigator | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2008 | Ford | Expedition | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2008 | Lincoln | Navigator | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2007 | Ford | Expedition | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| 2007 | Lincoln | Navigator | — | 4WD | Front Right | Optional heavy duty thermoplastic outboard boot included with this CV Axle Assembly.; CV Axle Assembly |
| No rows match your filter. | ||||||
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Ford — AL1Z3A428BLincoln — 7L1Z3B436A
