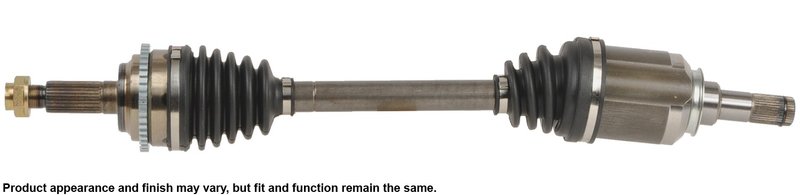

Cardone 66-2279 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Fusion, MKZ, and Milan

Cardone CV Axle Assembly 66-2279 is a new front left driveline replacement for select Ford, Lincoln, and Mercury applications. It is engineered for OE-level performance with attention to axle straightness, boot durability, and seal integrity for smooth operation in the 2010-2012 Ford Fusion, 2011-2012 Lincoln MKZ, and 2010-2011 Mercury Milan.

Key Features

• New CV axle assembly for front left applications
• ABS ring included with 44 teeth for proper wheel speed signal operation
• Stake-style axle nut locking type
• Splined input shaft with 35 splines and splined output shaft with 28 splines
• Compressed length: 25.9448818897638 in.
• Spindle nut included for installation
• Neoprene boot design with added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure boot-to-housing seal
• High-temperature, high-torque grease supports long service life
• Transmission seal diameter is precision-machined after heat treatment for proper sealing

Product Details

Cardone builds its CV Drive Axle assemblies around failure prevention, using engineering and testing experience to address common causes of repeat axle problems. The shafts are individually verified for straightness to help reduce vibration, while the boot and seal design focus on keeping grease in and contaminants out. Part number 66-2279 is a direct-fit replacement for drivers seeking a front left CV axle assembly for the Ford Fusion, Lincoln MKZ, or Mercury Milan listed in the fitment data.

This part cross-references Ford/Lincoln/Mercury OE number AE5Z3A427D for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns from a worn outer CV joint
• Grease on the chassis or suspension from a ruptured outer boot
• Vibration under acceleration caused by axle runout or shaft imbalance
• ABS warning light issues after axle replacement when the sensor ring is damaged or incorrect
• Binding or thumping from a worn inner joint or drivetrain misalignment

Installation Notes

• Fits 2010-2012 Ford Fusion, front left
• Fits 2011-2012 Lincoln MKZ, front left
• Fits 2010-2011 Mercury Milan, front left
• Do not let the axle hang unsupported during service; this can damage the inner joint
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification
• Do not reuse the prevailing-torque lock nut; install the supplied new spindle nut
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and wiring near the axle

Quality Assurance

Cardone’s CV axle engineering process includes straightness verification for vibration control, precision-machined seal surfaces, and boot designs intended to resist common failure points. The brand’s remanufacturing and new-part development approach is centered on matching or exceeding OE performance expectations for driveline service.
