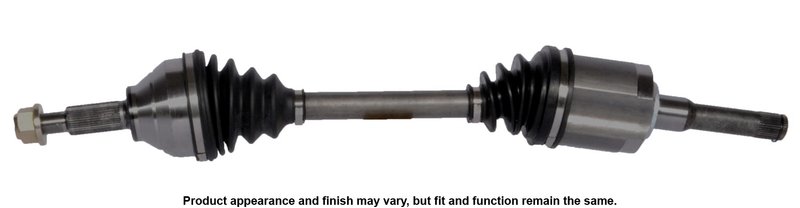

Cardone 66-2395 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Explorer

Restore smooth driveline operation with this Cardone CV axle assembly, engineered for front left applications on the Ford Explorer. Part number 66-2395 is built for direct replacement use on 2012-2019 Explorer models and is designed to address common CV axle wear issues such as vibration, clicking, and grease loss.

Cardone’s CV axle engineering focuses on the failure points that commonly affect original units. For this application, the axle shaft is individually checked for straightness to help deliver vibration-free performance, while the boot and joint design are built to resist stress and contamination.

Key Features

• Fits 2012-2019 Ford Explorer, front left
• Cardone CV Axle Assembly, part number 66-2395
• New axle retaining nut included for installation convenience
• Self-lock axle nut locking type with M22 x 1.5 spindle nut thread size
• Splined input shaft: 35 spline count
• Splined output shaft: 38 spline count
• Compressed length: 28.86 in.
• High-temperature, high-torque grease for driveline durability
• Neoprene boot design with added bellows where needed to reduce cracking and stress
• Pneumatically crimped boot clamps for a secure seal

Detailed Description

This Cardone CV axle assembly is a direct-fit driveline replacement for the front left side of the Ford Explorer. It is engineered to meet OE-level performance expectations by addressing common causes of CV joint failure, including boot cracking, grease contamination, and shaft runout. The axle shaft is verified for straightness to help reduce vibration at speed, and the sealed joint design helps maintain consistent operation under everyday driving loads.

Part number 66-2395 is a practical choice for Ford Explorer owners replacing a worn or noisy front axle. This part cross-references Ford BB5Z3B437K for the same application.

Common Problems This Part Can Help Solve

• Clicking or snapping noises during turns
• Grease on the chassis or suspension from a torn CV boot
• Front-end vibration during acceleration
• Grinding or popping from a worn outer CV joint
• Axle-related wobble or driveline shudder

Installation Notes and Tips

• Fits 2012-2019 Ford Explorer, front left.
• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench to tighten the retaining nut to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; install the supplied new nut.
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
• If the ABS light appears after installation, inspect the sensor ring, sensor, and wiring for damage.

Quality Assurance

Cardone builds this CV axle assembly using engineering and testing methods developed around common OE failure modes. The shaft is inspected for straightness, and the boot and grease system are selected to support long-term driveline performance in normal service.
