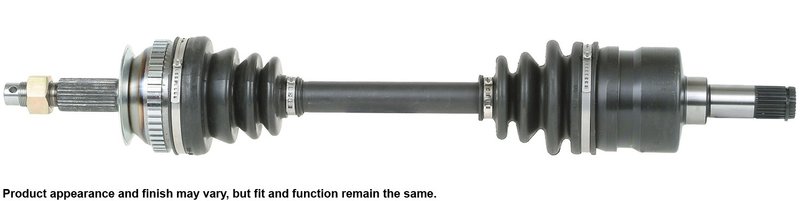

Cardone 66-3109 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Chrysler and Dodge

Cardone CV Axle Assembly 66-3109 is a new front left driveline replacement for select Chrysler, Dodge, and Plymouth minivans. It is engineered for OE-style performance with attention to boot durability, shaft straightness, and seal life for smooth operation in daily driving.

Key Features

• Fits front left applications on select Chrysler Voyager, Town & Country, Dodge Caravan, Dodge Grand Caravan, Chrysler Grand Voyager, and Plymouth Voyager models
• ABS ring included with 47 teeth for proper wheel speed signal integration
• New axle retaining nut and spindle nut included for installation convenience
• Neoprene boots use added bellows where needed to help resist stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease supports long-term joint performance
• Shafts are individually verified for straightness to reduce vibration
• Transmission seal diameter is precision-machined after heat treatment for consistent sealing

Detailed Description

This Cardone CV axle assembly 66-3109 is built for front left service on 1996-2008 Chrysler Voyager, 1996-2007 Chrysler Town & Country, 1996-2007 Dodge Caravan, 1996-2007 Dodge Grand Caravan, 1996-2002 Chrysler Grand Voyager, and 1996-2000 Plymouth Voyager and Grand Voyager applications. It is designed to address common CV axle failure points by focusing on boot integrity, joint protection, and shaft runout control. This part cross-references Chrysler 4641855AA and Dodge 4641981 for the same application.

The Cardone CV Axle Assembly line is engineered around failure prevention, not just replacement. For this application, the design includes a verified straight shaft for vibration-free operation, a sealed boot system to help keep grease in and contaminants out, and OE-style fitment details that support reliable driveline performance. Part number 66-3109 is a direct-fit solution for drivers servicing Chrysler Town & Country, Dodge Caravan, and related front-wheel-drive minivans.

Common Problems This Part Can Address

• Clicking or snapping noises during turns
• Grease leakage around the axle boot or suspension area
• Front-end vibration during acceleration or at speed
• ABS warning light after axle replacement when the sensor ring is damaged or incorrect
• Grinding or binding caused by a worn outer or inner CV joint

Installation Notes and Tips

• Do not let the CV axle hang unsupported during service; this can damage the inner joint
• Use a torque wrench on the retaining nut and follow manufacturer torque specifications
• Do not reuse a prevailing-torque lock nut; install the new nut supplied with the axle
• Replace transaxle seals when servicing CV drive axles to help prevent leaks
• Inspect the ABS sensor, wiring, and ring during installation to avoid an ABS fault

Quality Assurance

Cardone applies testing and engineering methods developed from CV axle failure analysis to improve durability and fit. Shafts are checked for straightness, and the sealing surfaces are machined for consistent performance. The CV axle assembly is new and built to meet OE-level expectations for the listed Chrysler, Dodge, and Plymouth applications.
