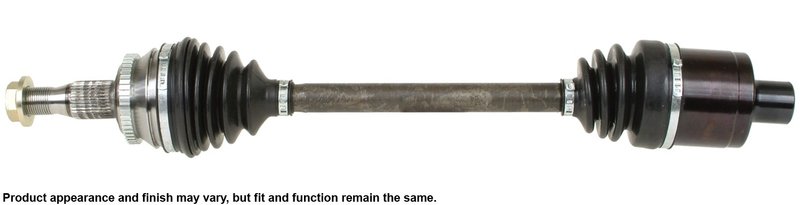

Cardone 66-3130 CV Axle Assembly - Front Left
| Brand | Cardone 66-3130 |
|---|---|
| Position | Front Left |
| ABS Ring Included | Yes |
| ABS Ring Tooth Count | 50 |
| Axle Nut Locking Type | Standard |
| Compressed Length (in) | 27.375 |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 27 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 33 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Product line | CV Axle Assembly |
| Fits | Chrysler and Dodge · 31 vehicles |
OE performance. Engineered to meet or exceed original equipment standards.
Vibration-free performance. Each shaft is individually verified for straightness at all speeds.
New axle nut included. For a smoother installation when the original nut is worn or stripped.
Cross-references Chrysler 4882517, Chrysler 4882519 and Dodge 4882517 for the same application. See all 4.
Cardone CV Axle Assembly for Front Left Applications
Cardone CV Axle Assembly 66-3130 is a new front left driveline replacement for select Chrysler and Dodge vehicles. It is engineered for OE-level performance with attention to boot durability, shaft straightness, and smooth operation at speed.
Key Features
- Fits 1999-2004 Chrysler 300M, front left
- Fits 1998-2004 Chrysler Concorde, front left
- Fits 1998-2004 Chrysler Intrepid, front left
- Fits 1998-2004 Dodge Intrepid, front left
- Fits 1999-2001 Chrysler LHS, front left
- ABS ring included with 50-tooth count
- Splined input shaft with 27 splines and splined output shaft with 33 splines
- New axle retaining nut and spindle nut included
- Compressed length: 27.375 in.
- Boot clamps are pneumatically crimped for a secure seal
- High-temperature, high-torque grease is used for long-term joint protection
Product Details
Cardone 66-3130 is part of the brand’s CV Axle Assembly line, built around testing and engineering methods developed to address common original axle failure points. The design focuses on boot durability, joint protection, and shaft straightness to help deliver vibration-free performance. Neoprene boots use additional bellows where needed to reduce stress and ozone cracking, while each shaft is individually verified for straightness before use. This part cross-references Chrysler and Dodge OE numbers 4882517 and 4882519 for the same application.
Common Problems This Axle Can Address
- Clicking or snapping during hard turns and acceleration
- Grease leakage from a ruptured outer CV boot
- Front-end vibration caused by axle runout or shaft imbalance
- Grinding noise from a worn outer CV joint
- ABS warning light issues related to a damaged sensor ring or axle-side sensor components
Installation Notes
Use a torque wrench and tighten the retaining nut to the vehicle manufacturer’s specification. Do not reuse a prevailing-torque lock nut; install the new nut supplied with the axle. Keep the axle supported during service so it does not hang by the joints, and replace transaxle seals when installing a new CV axle assembly. If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.
Quality Assurance
Cardone applies 100% runout inspection to shafts used in remanufacturing and verifies straightness to help reduce vibration at all speeds. The CV axle design also uses precision-machined seal surfaces after heat treatment to support proper seal life and consistent fitment on Chrysler 300M, Concorde, Intrepid, and LHS front left applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Chrysler | 300M | Base | Front Left | CV Axle Assembly |
| 2004 | Chrysler | Concorde | — | Front Left | CV Axle Assembly |
| 2004 | Chrysler | Intrepid | — | Front Left | CV Axle Assembly |
| 2004 | Dodge | Intrepid | — | Front Left | CV Axle Assembly |
| 2003 | Chrysler | 300M | Base | Front Left | CV Axle Assembly |
| 2003 | Chrysler | 300M | Pro-Am | Front Left | CV Axle Assembly |
| 2003 | Chrysler | Concorde | — | Front Left | CV Axle Assembly |
| 2003 | Chrysler | Intrepid | — | Front Left | CV Axle Assembly |
| 2003 | Dodge | Intrepid | — | Front Left | CV Axle Assembly |
| 2002 | Chrysler | 300M | Base | Front Left | CV Axle Assembly |
| 2002 | Chrysler | Concorde | — | Front Left | CV Axle Assembly |
| 2002 | Chrysler | Intrepid | — | Front Left | CV Axle Assembly |
| 2002 | Dodge | Intrepid | — | Front Left | CV Axle Assembly |
| 2001 | Chrysler | 300M | — | Front Left | CV Axle Assembly |
| 2001 | Chrysler | Concorde | — | Front Left | CV Axle Assembly |
| 2001 | Chrysler | Intrepid | — | Front Left | CV Axle Assembly |
| 2001 | Chrysler | LHS | — | Front Left | CV Axle Assembly |
| 2001 | Dodge | Intrepid | — | Front Left | CV Axle Assembly |
| 2000 | Chrysler | 300M | — | Front Left | CV Axle Assembly |
| 2000 | Chrysler | Concorde | — | Front Left | CV Axle Assembly |
| 2000 | Chrysler | Intrepid | — | Front Left | CV Axle Assembly |
| 2000 | Chrysler | LHS | — | Front Left | CV Axle Assembly |
| 2000 | Dodge | Intrepid | — | Front Left | CV Axle Assembly |
| 1999 | Chrysler | 300M | — | Front Left | CV Axle Assembly |
| 1999 | Chrysler | Concorde | — | Front Left | CV Axle Assembly |
| 1999 | Chrysler | Intrepid | — | Front Left | CV Axle Assembly |
| 1999 | Chrysler | LHS | — | Front Left | CV Axle Assembly |
| 1999 | Dodge | Intrepid | — | Front Left | CV Axle Assembly |
| 1998 | Chrysler | Concorde | — | Front Left | CV Axle Assembly |
| 1998 | Chrysler | Intrepid | — | Front Left | CV Axle Assembly |
| 1998 | Dodge | Intrepid | — | Front Left | CV Axle Assembly |
