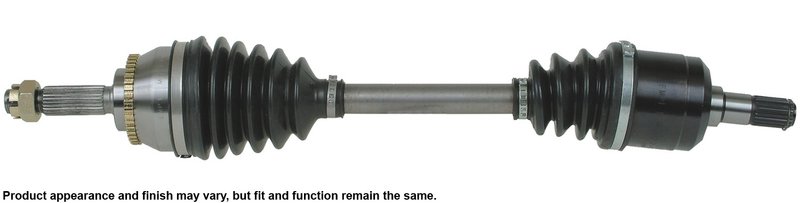

Cardone 66-3145 CV Axle Assembly - Front Right

CV Axle Assembly for Mitsubishi Front Right

Cardone 66-3145 is a new CV axle assembly engineered for front right applications on select Mitsubishi Eclipse and Mitsubishi Galant models. It is built with attention to shaft straightness, boot durability, and seal integrity to help deliver smooth driveline operation and consistent ABS performance.

Key Features

• Fits 1995-1999 Mitsubishi Eclipse, front right
• Fits 1994-1998 Mitsubishi Galant, front right
• ABS ring included with 43 teeth for proper wheel speed signal operation
• New axle retaining nut and spindle nut included for service replacement
• 25-spline input and 25-spline output shaft connection
• Castle-style axle nut locking type
• Compressed length: 25.25 in.
• Neoprene boots with added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure boot-to-housing seal
• High-temperature, high-torque grease is used for long-term joint lubrication

Product Details

Cardone’s CV Axle Assembly line is engineered from testing and remanufacturing experience focused on common CV failure points. The shaft is individually verified for straightness to help reduce vibration at speed, while the boot design and sealing process are intended to address the wear patterns that often lead to grease loss and joint contamination. This Cardone 66-3145 axle is a direct driveline service part for front right Mitsubishi Eclipse and Mitsubishi Galant applications, and it cross-references Mitsubishi OE numbers such as MB896796 and MB937746 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns and acceleration
• Grease leakage around a torn or cracked CV boot
• Front-end vibration caused by a bent or out-of-runout axle shaft
• ABS warning light concerns related to a damaged sensor ring or axle-mounted signal component
• Clunking or thumping from a worn inner or outer CV joint

Installation Notes

• Do not let the axle hang unsupported during service; support the shaft to avoid joint damage.
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; replace it with the supplied nut.
• Install new transaxle seals when replacing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone designs CV drive axles to meet or exceed original equipment performance targets through application-specific engineering and inspection. Each shaft is checked for straightness to help support vibration-free operation across the speed range.
