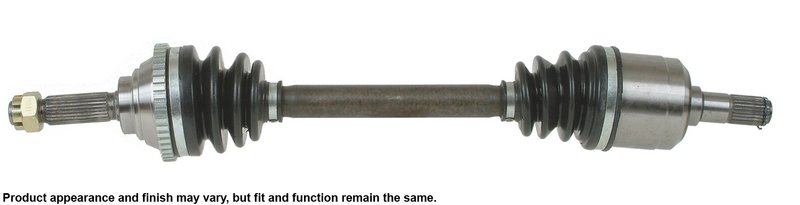

Cardone 66-3230 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Sonata

Cardone 66-3230 is a new CV axle assembly built for front right applications on the 1994-1998 Hyundai Sonata. It is engineered for smooth driveline operation, stable ABS signal performance, and dependable replacement of a worn or damaged axle.

For Hyundai Sonata front right service, this CV axle assembly combines a verified straight shaft with a sealed joint design to help reduce vibration and restore consistent power transfer. The Cardone CV Axle Assembly line focuses on OE-style fit and durability for everyday driveline repair.

Key Features

• Fits 1994-1998 Hyundai Sonata, front right
• Cardone part number 66-3230
• New CV axle assembly with complete axle and instruction sheet
• ABS ring included with 47 teeth for signal compatibility
• 25-spline input and 25-spline output shaft connection
• Compressed length: 24.9375 in.
• Spindle nut included; axle nut locking type is standard
• Neoprene boot design with added bellows where needed to resist stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease is used for long-lasting joint performance

Product Details

Cardone’s CV Axle Assembly program is built around testing and engineering practices developed to address common axle failure points. The shaft is individually checked for straightness to help maintain vibration-free operation, while the boot and seal design are intended to support long service life in demanding driveline conditions. This makes 66-3230 a practical replacement for a Hyundai Sonata front right axle that has developed noise, grease leakage, or driveline vibration.

This part cross-references Hyundai 4950834A20 and 4950834B20 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns and acceleration
• Grease on the chassis or suspension from a ruptured outer boot
• Front-end vibration caused by a bent or out-of-runout axle shaft
• ABS warning light issues related to a damaged sensor ring or axle-mounted signal component
• Thumping or binding from a worn inner or outer CV joint

Installation Notes

• Fits 1994-1998 Hyundai Sonata, front right.
• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications.
• Do not reuse a prevailing-torque lock nut; install a new nut.
• Replace transaxle seals when servicing CV drive axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone designs and verifies CV drive axles with straightness inspection and boot sealing methods aimed at reducing repeat failure. The axle shaft is checked for runout, and the assembly uses materials and machining steps selected to support reliable OE-style performance in daily driving.
