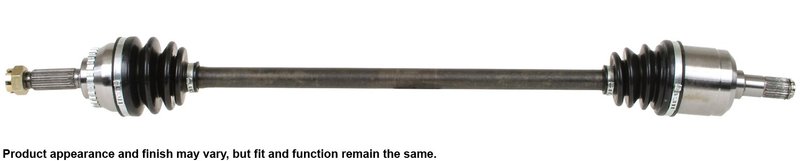

Cardone 66-3236 CV Axle Assembly - Front Right

Reliable CV Axle Assembly for Hyundai Elantra and Tiburon

The Cardone CV Axle Assembly 66-3236 is engineered to restore driveline performance for Hyundai Elantra and Tiburon models. Designed with precision, this axle assembly includes critical features such as an ABS ring and castle-type axle nut locking for secure installation and reliable operation.

• Includes ABS ring with 29 teeth for accurate wheel speed sensor readings
• Castle-type axle nut locking mechanism for secure fitment
• Compressed length of 36.5 inches to match OEM specifications
• Spline input shaft with 25 splines and splined output shaft connection
• Factory-balanced shafts to reduce vibrations and ensure smooth operation

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly line focuses on delivering complete axle shaft replacements that meet or exceed OEM standards. Each assembly is inspected for run-out and includes necessary components such as ABS rings to maintain vehicle safety systems. The 66-3236 part number represents a direct-fit solution for Hyundai Elantra and Tiburon models, ensuring compatibility and durability.

Detailed Product Description

This CV axle assembly features a 29-tooth ABS ring that integrates seamlessly with the vehicle’s anti-lock braking system, providing accurate sensor feedback. The axle nut uses a castle locking type, which requires a cotter pin for secure fastening, preventing loosening during operation. The compressed length of 36.5 inches matches the original equipment dimensions, ensuring proper fitment without modification. The input shaft is splined with 25 teeth, and the output shaft also uses a splined connection style, facilitating a secure and precise drivetrain connection.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axles on Hyundai Elantra and Tiburon
• Eliminates front-end grinding noises caused by faulty CV joints
• Resolves ABS warning lights triggered by damaged or missing ABS rings
• Fixes vibrations and wheel wobble during turns due to axle shaft imbalance
• Addresses clicking noises when accelerating or turning hard

Installation Notes and Tips

• Never allow the CV axle to hang unsupported during installation to avoid joint damage
• Do not reuse the original prevailing torque lock nut; always install a new castle nut with cotter pin
• Avoid using impact wrenches on the retaining nut to prevent damage
• Ensure the ABS ring is properly seated to maintain accurate sensor readings
• Inspect and replace transmission seals when installing the new axle assembly

Quality Assurance and Warranty

Each Cardone CV Axle Assembly 66-3236 undergoes 100% run-out inspection to prevent vibrations and ensure smooth operation. The shafts are factory balanced and include ABS rings to maintain vehicle safety systems. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
