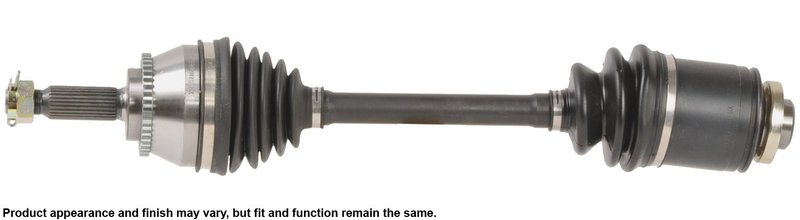

Cardone 66-3268 CV Axle Assembly - Front Right

Reliable CV Axle Assembly for Mitsubishi Diamante

The Cardone CV Axle Assembly 66-3268 is engineered to restore driveline performance for Mitsubishi Diamante vehicles. Designed with precision, this CV axle assembly includes an ABS ring and features a castle-type axle nut locking system to ensure secure installation and reliable operation.

• Includes ABS ring with 43 teeth for accurate wheel speed sensor readings
• Castle-type axle nut locking mechanism for secure fitment
• Compressed length of approximately 24.21 inches for exact fit
• Spline input shaft with 26 splines and splined output shaft connection
• Compatible specifically with Mitsubishi Diamante models

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly line focuses on delivering complete constant velocity axle solutions that meet or exceed OEM specifications. Each assembly is factory balanced to reduce vibrations and includes necessary components such as ABS rings to maintain vehicle safety systems. The 66-3268 part number represents a direct replacement designed for seamless integration with the Mitsubishi Diamante driveline system.

Product Details and Specifications

This CV axle assembly features a 43-tooth ABS ring that works with the vehicle’s anti-lock braking system to provide accurate wheel speed data. The axle nut uses a castle locking type, which requires a cotter pin for secure fastening, preventing loosening during operation. The compressed length of 24.21 inches ensures proper fitment without modification. The input shaft connects via a 26-spline interface, while the output shaft is also splined for a secure connection to the hub assembly.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Mitsubishi Diamante
• Eliminating front-end grinding or clicking noises during turns
• Resolving ABS warning light issues caused by faulty ABS rings
• Fixing vibrations or wheel wobble related to axle shaft imbalance
• Addressing drivetrain shifting or clunking noises under acceleration

Installation Notes and Tips

When installing the Cardone 66-3268 CV Axle Assembly, avoid letting the axle shafts hang unsupported to prevent joint damage. Use a torque wrench to tighten the castle-type axle nut and secure it with a cotter pin; do not reuse prevailing torque lock nuts. It is recommended to replace transmission seals during axle installation to prevent leaks. Impact wrenches should not be used on retaining nuts to avoid damage.

Quality Assurance and Warranty

Cardone inspects each CV axle shaft 100% for run-out to minimize vibrations and ensure smooth operation. The assemblies are built to meet OEM standards for durability and fitment. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
