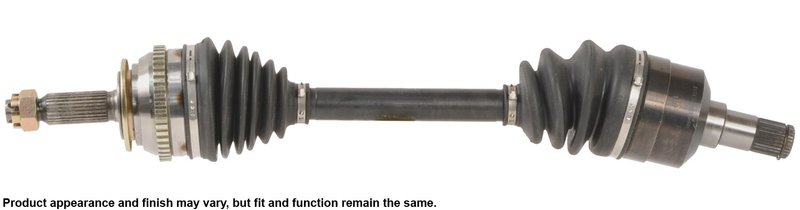

Cardone 66-3383 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Hyundai XG350/XG300

Restore smooth driveline operation with this Cardone CV axle assembly, part number 66-3383. It is built for front left applications on the Hyundai XG350 and Hyundai XG300, with engineering focused on OE-level fit, straightness, and dependable vibration control.

Cardone CV axle assemblies are developed from extensive testing and remanufacturing experience, with attention to the common failure points that affect original axles. For Hyundai XG350 front left and Hyundai XG300 front left service, this axle is designed to deliver consistent performance and a precise replacement fit.

Key Features

• Part number 66-3383 for direct identification
• Fits 2002-2005 Hyundai XG350, front left
• Fits 2001 Hyundai XG300, front left
• ABS ring included for proper sensor signal integration
• New spindle nut included for installation convenience
• Castle-style axle nut locking type
• Compressed length: 25.6875 in.
• 28-spline splined input shaft and 27-spline splined output shaft
• Neoprene boots with added bellows where needed to resist stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease supports long service life
• Shafts are individually verified for straightness to reduce vibration

Detailed Description

This Cardone CV axle assembly, 66-3383, is engineered for front left driveline service on the Hyundai XG350 and Hyundai XG300. The design addresses common CV axle failure points by using durable boot construction, precision-machined sealing surfaces, and shaft verification for runout control. That focus helps support smooth operation at speed and consistent driveline performance.

Cardone’s CV axle product line emphasizes OE-style fit and durability, with boot designs that resist cracking and grease loss, plus careful inspection of shaft straightness to help prevent vibration. For drivers searching for a Hyundai XG350 front left CV axle assembly or a Hyundai XG300 front left replacement axle, part number 66-3383 provides a direct service solution.

This part cross-references Hyundai 4950039803 and 4950039811 for the same application.

Common Problems This Part Can Address

• Clicking or snapping during hard turns
• Grease on the chassis or suspension from a torn CV boot
• Front-end vibration during acceleration
• Grinding or noise from the front axle area
• ABS warning light caused by axle sensor ring or wiring damage

Installation Notes and Tips

• Do not let the CV axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications.
• Do not reuse a prevailing-torque lock nut; replace it with the supplied new nut.
• Install new transaxle seals when replacing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone builds this CV axle assembly using inspection and engineering practices aimed at OE-level performance. Shafts are checked for straightness, and the boot and grease system are selected to support long-term driveline reliability in normal service.
