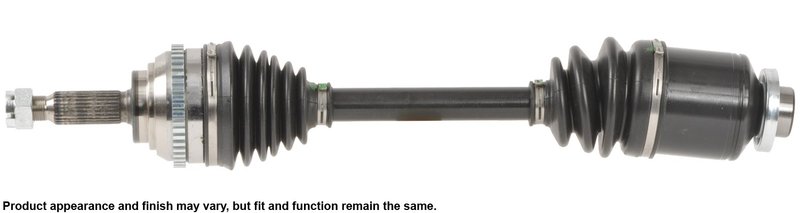

Cardone 66-3384 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Hyundai XG350/XG300

Restore driveline performance with the Cardone 66-3384 CV axle assembly, built for the front right position on select Hyundai applications. This new axle is engineered for smooth operation, accurate fitment, and dependable transfer of power from the transaxle to the wheel hub.

Fits 2002-2005 Hyundai XG350, front right. Fits 2001 Hyundai XG300, front right.

Key Features

• Cardone CV Axle Assembly, part number 66-3384
• New unit with complete axle and instruction sheet
• ABS ring included with 47 teeth for proper wheel speed signal integration
• Self-lock axle nut locking type with spindle nut included
• Splined input shaft with 28 splines and splined output shaft with 27 splines
• Compressed length: 24.0157480314961 in.
• Neoprene boot design with added bellows where needed to reduce stress and ozone cracking
• High-temperature, high-torque grease for consistent joint lubrication
• Boot clamps are pneumatically crimped for a secure seal
• Transmission seal diameter is precision-machined after heat treatment for proper sealing surface finish

Product Details

Cardone applies its CV axle engineering and testing experience to this 66-3384 assembly to address common failure points found in original equipment axles. The shaft is individually verified for straightness to help deliver vibration-free performance at speed, while the boot and grease package are selected to support long-term joint protection. This CV axle assembly is a direct-fit driveline replacement for Hyundai XG350 and Hyundai XG300 front right applications, making it a practical choice when servicing noise, vibration, or damaged axle components.

This part cross-references Hyundai 4950039850 and 4950039852 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns and acceleration
• Grease leakage around the axle boot or suspension area
• Front-end vibration caused by a bent or out-of-run axle shaft
• ABS warning light concerns related to a damaged sensor ring or axle-mounted signal component
• Grinding or clunking from a worn outer or inner CV joint

Installation Notes

• Fits 2002-2005 Hyundai XG350, front right, and 2001 Hyundai XG300, front right.
• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench for the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; install the supplied new spindle nut.
• Replace transaxle seals when servicing CV drive axles to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone designs its CV drive axles to meet or exceed original equipment performance targets through application-specific engineering, boot design improvements, and 100% shaft straightness verification. The result is a replacement axle built for consistent fit, sealing, and driveline operation on Hyundai XG350 and Hyundai XG300 applications.
