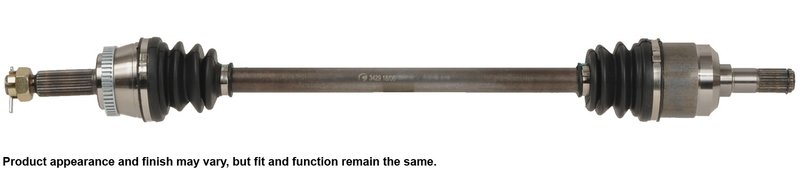

Cardone 66-3429 CV Axle Assembly - Rear Left or Rear Right

Cardone CV Axle Assembly for Hyundai Tucson

Restore driveline performance with this Cardone CV axle assembly, part number 66-3429, for rear left and rear right applications on the 2005-2009 Hyundai Tucson. Built for direct replacement service, it is engineered to address common CV axle wear concerns while supporting smooth, vibration-free operation.

Key Features

• Fits 2005-2009 Hyundai Tucson, rear left
• Fits 2005-2009 Hyundai Tucson, rear right
• ABS ring included with 48 teeth for proper speed signal operation
• Castle-style axle nut locking type
• Compressed length: 31.57 in.
• Splined input shaft connection, 25 spline count
• Splined output shaft connection, 27 spline count
• New spindle nut included
• Neoprene boots with added bellows where needed to reduce stress and cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease for durable joint lubrication
• Shafts are individually verified for straightness to help reduce vibration

Product Details

Cardone CV axle assemblies are engineered from testing and remanufacturing experience focused on the failure points that commonly affect original axles. For the Hyundai Tucson, part number 66-3429 is built to deliver OE-style driveline function with attention to boot durability, seal integrity, and shaft runout control. The result is a replacement axle assembly intended for rear axle service on the 2005-2009 Hyundai Tucson, including both rear left and rear right positions.

This part cross-references Hyundai 496002E000 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns
• Grease leakage around the axle boot or suspension area
• Vibration during acceleration or at speed
• ABS warning light concerns related to axle sensor ring damage or signal issues
• Grinding or binding caused by worn CV joints

Installation Notes and Tips

Do not let the CV axle hang unsupported during service, as this can damage the inner joint or separate the shaft. Always replace the axle retaining nut with the new nut supplied and torque it to the manufacturer specification; do not reuse a prevailing-torque lock nut or install it with an impact wrench. When replacing CV drive axle assemblies, install new transaxle seals to help prevent leaks. If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone engineers these CV drive axles to meet or exceed original equipment performance targets through application-specific design, boot construction improvements, and 100% shaft runout inspection. Part number 66-3429 is a new CV axle assembly supplied with the components listed in the product data and built for consistent rear driveline service on the Hyundai Tucson.
