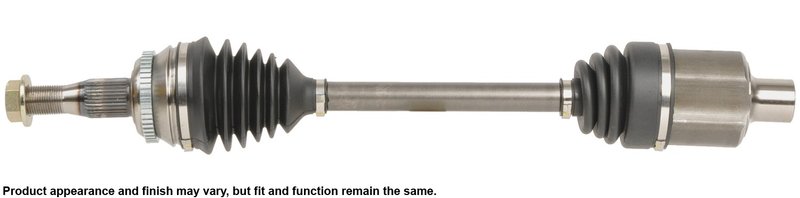

Cardone 66-3441 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Chrysler 300M

Cardone 66-3441 is a new CV axle assembly engineered for front left applications on the 2002-2004 Chrysler 300M. It is built for smooth driveline operation, with a verified straight shaft and components selected to help maintain consistent performance under everyday driving loads.

Key Features

• Fits 2002-2004 Chrysler 300M, front left
• Cardone CV Axle Assembly, part number 66-3441
• ABS ring included with 50-tooth count
• Self-lock axle nut style with spindle nut included
• Splined input shaft: 27 spline count
• Splined output shaft: 33 spline count
• Neoprene boots with added bellows where needed to resist cracking and stress
• High-temperature, high-torque grease for driveline service
• Boot clamps are pneumatically crimped for a secure seal
• Transmission seal diameter is precision-machined after heat treatment

Product Details

Cardone 66-3441 is part of the Cardone CV Axle Assembly line, a driveline-focused product line built around testing, engineering, and failure analysis. For Chrysler 300M front left service, this axle assembly is designed to address common CV axle failure points such as boot cracking, grease loss, contamination, and vibration. The shaft is individually checked for straightness to support vibration-free operation at speed, and the ABS ring is integrated for vehicles that rely on a tone ring signal. This part cross-references Chrysler 5074003AA for the same application.

Common Problems This Part Can Address

• Clicking or snapping during hard turns and acceleration
• Grease on the chassis or suspension from a ruptured CV boot
• Front-end vibration caused by a worn or bent axle shaft
• ABS warning light triggered by a damaged sensor ring or related axle component
• Grinding or thumping noises from a worn outer or inner CV joint

Installation Notes

• Do not let the axle hang unsupported during service; support the driveline to avoid joint damage.
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; replace it with the supplied axle nut.
• Replace transaxle seals when installing a replacement CV axle assembly to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone engineers this CV axle assembly using testing and remanufacturing experience focused on reducing repeat failure. The shaft is verified for straightness, the boot design is intended to resist common cracking issues, and the seal surface is precision-machined after heat treatment to support long service life. Cardone 66-3441 is a new part and is built to meet OE-level performance expectations for the Chrysler 300M front left application.
