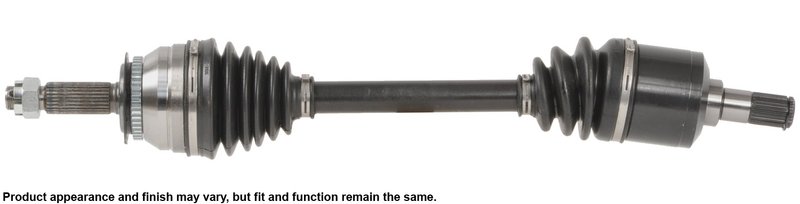

Cardone 66-3461 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Hyundai Tiburon

Cardone 66-3461 is a new CV axle assembly engineered for front left service on the 2003-2008 Hyundai Tiburon. Built for smooth driveline operation, it addresses common CV axle failure points with a design focused on seal integrity, joint durability, and vibration control.

Key Features

• Fits 2003-2008 Hyundai Tiburon, front left
• ABS ring included with 44 teeth for proper speed signal operation
• Self-lock axle nut locking type with spindle nut included
• 27-spline input shaft and 27-spline output shaft connection
• Neoprene boots with added bellows where needed to resist stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease supports long-term joint performance
• Shafts are individually verified for straightness to help reduce vibration
• Transmission seal diameter is precision-machined after heat treatment for proper sealing

Detailed Description

This Cardone CV axle assembly is designed for Hyundai Tiburon front left applications and is built around the failure modes commonly seen in original CV axles. Cardone uses engineering and testing methods developed from driveline experience to improve durability, including reinforced neoprene boot design, verified shaft straightness, and precision-machined sealing surfaces. The result is a replacement axle assembly intended to restore smooth power transfer and consistent driveline performance on the 2003-2008 Hyundai Tiburon. Part number 66-3461 is also referenced for Hyundai applications under OE-style cross numbers, including 495012C100 and 495012C101.

What It Helps Fix

• Clicking or snapping noises during turns from worn outer CV joints
• Grease leakage around the axle boot or chassis area
• Vibration during acceleration caused by axle runout or imbalance
• ABS warning light issues related to damaged sensor rings or wiring near the axle
• Thumping or driveline shudder from a failing front left CV axle

Installation Notes and Tips

Fits 2003-2008 Hyundai Tiburon, front left. Do not let the axle hang unsupported during service, as this can damage the inner joint. Use a torque wrench to install the retaining nut to the manufacturer’s specification; do not use an impact wrench. Replace the prevailing-torque lock nut rather than reusing the old one, and install new transaxle seals when replacing CV drive axle assemblies to help prevent leaks. If the ABS ring, sensor, or wiring is damaged during installation, the ABS light may remain on.

Quality Assurance

Cardone builds this CV axle assembly using inspection and engineering practices aimed at OE-level performance. Shafts are checked for straightness and runout, and only parts meeting specification are used in assembly. The design also focuses on reducing common boot and seal failure points to support reliable operation in daily driving.
