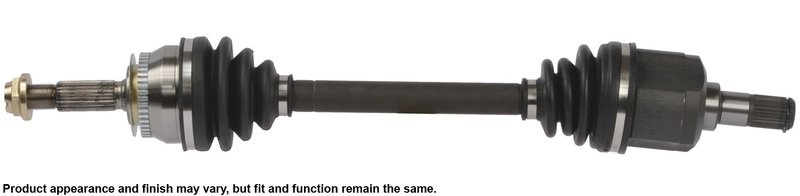

Cardone 66-3526 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Kia Spectra

Restore smooth driveline operation with this Cardone CV axle assembly, part number 66-3526. It is built for the front left position on select Kia Spectra and Spectra5 models, with engineering focused on OE-level fit, vibration control, and durable joint performance.

For Kia Spectra and Kia Spectra5 front left axle replacement, this assembly is designed around the details that matter most: straight shaft verification, secure boot sealing, and proper spline engagement. The result is a direct-fit driveline component for 2006-2009 Kia Spectra and 2007-2009 Kia Spectra5 applications.

Key Features

• Part number 66-3526 for select Kia front left applications
• Includes ABS ring with 44 teeth for proper wheel speed signal operation
• Self-lock axle nut style with spindle nut included
• Compressed length: 25.25 in.
• 27-spline input shaft and 25-spline output shaft connection
• New axle retaining nut supplied for installation convenience
• Neoprene boot design with added bellows where needed to resist stress and cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease used for joint protection
• Shafts are individually verified for straightness to reduce vibration

Product Details

Cardone CV axle assemblies are engineered from testing and remanufacturing experience to address common failure points in original CV components. This axle uses precision-machined sealing surfaces after heat treatment, helping support long seal life, while the verified shaft straightness helps promote vibration-free operation at speed. If you need a replacement CV axle assembly for a Kia Spectra front left or Kia Spectra5 front left application, part number 66-3526 is built for that service.

This part cross-references Kia 495012F700 and 495012F710 for the same application.

Common Problems This Part Addresses

• Clicking or snapping during turns from a worn outer CV joint
• Grease on the chassis or suspension from a ruptured boot
• Front-end vibration caused by axle runout or shaft imbalance
• ABS warning light issues after axle replacement when the sensor ring is damaged or incorrect
• Thumping or driveline noise from a failing CV axle assembly

Installation Notes

• Fits 2006 Kia Spectra, front left, with 27 spline inboard joint
• Fits 2007-2009 Kia Spectra, front left
• Fits 2007-2009 Kia Spectra5, front left
• Do not let the axle hang unsupported during service
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications
• Do not reuse a prevailing-torque lock nut
• Install new transaxle seals when replacing CV drive axle assemblies
• Inspect ABS sensor components and wiring near the axle during installation

Quality Assurance

Cardone designs its CV drive axles around known failure causes in original equipment parts, including boot cracking, seal wear, and shaft runout. Each shaft is checked for straightness to support smooth operation, and the assembly is built with materials and sealing details intended to meet OE performance expectations for Kia Spectra and Kia Spectra5 driveline service.
