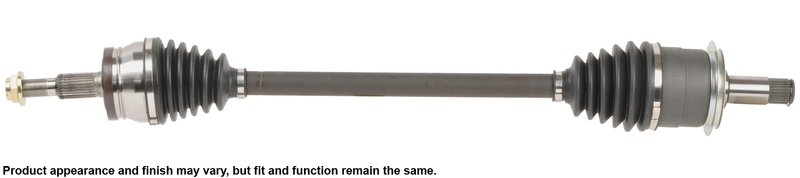

Cardone 66-3560 CV Axle Assembly - Rear Right

Rear Right CV Axle Assembly for Chrysler and Dodge

Cardone 66-3560 is a new rear right CV axle assembly engineered for smooth driveline operation in select Chrysler and Dodge applications. It is built with a self-lock axle nut, splined 27-tooth input and output connections, and a compressed length of 32.0079 in. Compatible With 2005-2010 Chrysler 300, 2005-2008 Dodge Magnum, 2006-2008 Dodge Charger, 2009 Dodge Challenger, and 2010 Dodge Charger without Performance Suspension.

The Cardone CV Axle Assembly line is developed from extensive CV driveline testing and engineering. For this application, the design focuses on reducing repeat failure causes such as boot cracking, seal issues, and shaft runout. The result is a replacement axle built for OE-style fit and vibration-free operation.

Key Features

• Cardone CV Axle Assembly, part number 66-3560
• Rear right position for select Chrysler 300, Dodge Charger, Dodge Challenger, and Dodge Magnum models
• Splined 27-tooth input shaft and 27-tooth output shaft connection
• Self-lock axle nut style with spindle nut included
• Neoprene boot design with added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease for driveline durability
• Shafts are individually verified for straightness to help reduce vibration
• Transmission seal diameter is precision-machined after heat treatment for proper seal life

Detailed Description

Cardone 66-3560 is a new rear right CV axle assembly for Chrysler and Dodge rear-wheel-drive applications that require a splined 27-tooth axle connection. It is designed to restore driveline function where the original axle has developed noise, vibration, or joint wear. The axle is built with attention to shaft straightness, boot sealing, and seal surface finish to support consistent operation in daily driving conditions.

This part cross-references Chrysler and Dodge OE numbers for the same application. If you are replacing a rear right CV axle on a 2005-2010 Chrysler 300 or a 2005-2008 Dodge Magnum, this assembly provides the correct fitment profile for the listed vehicles. It also applies to 2006-2008 Dodge Charger, 2009 Dodge Challenger, and 2010 Dodge Charger without Performance Suspension.

What It Helps Fix

• Clicking or snapping from a worn outer CV joint during turns
• Grease leakage from a ruptured boot
• Vibration caused by axle shaft runout or imbalance
• Thumping or driveline shake under acceleration
• Noise from a damaged or worn axle assembly

Installation Notes and Tips

• Fits 2005-2008 Chrysler 300, rear right
• Fits 2010 Chrysler 300, rear right
• Fits 2005-2008 Dodge Magnum, rear right
• Fits 2006-2008 Dodge Charger, rear right
• Fits 2009 Dodge Challenger, rear right
• Fits 2010 Dodge Charger, rear right, without Performance Suspension
• Do not let the axle hang unsupported during service.
• Use a torque wrench on the retaining nut and follow manufacturer torque specifications.
• Replace the axle nut rather than reusing a prevailing-torque lock nut.
• Install new transaxle seals when replacing CV drive axle assemblies to help prevent leaks.

Quality Assurance

Cardone engineers and tests its CV drive axles to address common failure points found in original equipment designs. Each shaft is checked for straightness, and the boot and seal details are built to support reliable service life and smooth operation.
