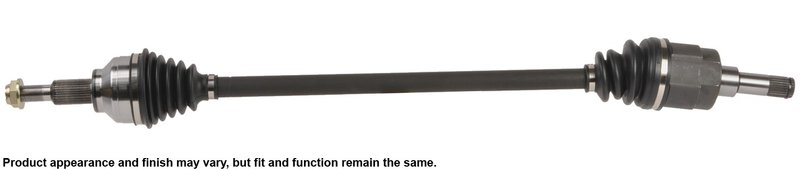

Cardone 66-3641 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Front Right Applications

Cardone 66-3641 is a new CV axle assembly engineered for front right driveline service on select Chrysler and Dodge vehicles. It is built with a splined 25-tooth input shaft, a splined 32-tooth output shaft, ABS ring included, and a self-lock axle nut style for a direct replacement on the listed applications.

Compatible With 2011-2014 Chrysler 200, front right; 2010-2014 Dodge Avenger, front right; 2008-2010 Chrysler Sebring, front right; 2010 Dodge Journey, front right; and 2008-2009 Dodge Avenger, front right. This Cardone CV axle assembly is also referenced by Dodge OE numbers 5085130AA and 5085130AB for the same application.

Key Features

• Cardone CV Axle Assembly, part number 66-3641
• Front right position for listed Chrysler and Dodge applications
• ABS ring included for vehicles using wheel speed sensing at the axle
• Self-lock axle nut style with spindle nut included
• Splined input shaft with 25 splines
• Splined output shaft with 32 splines
• Compressed length: 39.187 in.
• New axle retaining nut supplied for installation
• Neoprene boot design with added bellows where needed to reduce stress and ozone cracking
• High-temperature, high-torque grease for driveline service
• Boot clamps are pneumatically crimped for a secure seal
• Shafts are individually verified for straightness to support vibration-free operation

Product Details

Cardone’s CV axle program is built around testing and engineering methods developed to address common original axle failure points. For this application, the axle shaft is checked for straightness, the boot design is reinforced where needed, and the seal surfaces are precision finished after heat treatment to support long service life. The result is a replacement CV axle assembly for Chrysler 200, Dodge Avenger, Chrysler Sebring, and Dodge Journey front right service that follows OE-style dimensions and driveline requirements.

Common Problems This Part Can Address

• Clicking or snapping during turns from a worn outer CV joint
• Grease leakage around the axle boot from a ruptured boot
• Vibration or thumping during acceleration from a worn or bent axle shaft
• ABS warning light after axle replacement when the sensor ring is damaged or missing
• Grinding noise from the front end caused by CV joint wear

Installation Notes and Tips

• Fits 2011-2014 Chrysler 200, front right.
• Fits 2010-2014 Dodge Avenger, front right.
• Fits 2008-2010 Chrysler Sebring, front right.
• Fits 2010 Dodge Journey, front right.
• Fits 2008-2009 Dodge Avenger, front right.
• Do not let the axle hang unsupported during service.
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; install the supplied new nut.
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and wiring for damage.

Quality Assurance

Cardone designs and verifies CV drive axles to meet or exceed OE performance targets through application-specific engineering, boot design improvements, and 100% shaft runout inspection for vibration control. Part number 66-3641 is a new component built for consistent driveline operation in the listed Chrysler and Dodge applications.
