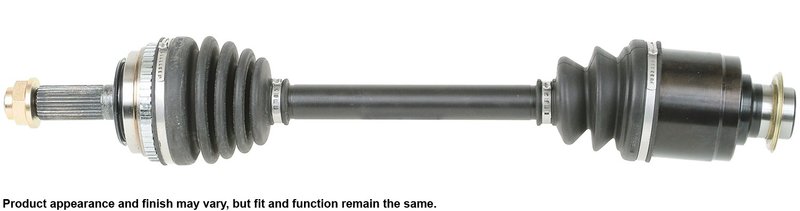

Cardone 66-4096 CV Axle Assembly - Front Right

Reliable Cardone CV Axle Assembly for Precise Driveline Performance

The Cardone CV Axle Assembly 66-4096 is engineered to restore driveline function and maintain vehicle stability. Designed with an integrated ABS ring and splined shaft connections, this axle assembly supports smooth power transfer and accurate wheel speed sensing.

• Includes ABS ring with 50 teeth for precise anti-lock braking system operation
• Stake-type axle nut locking for secure fitment
• Compressed length of 23.8125 inches for exact vehicle fit
• Splined input shaft with 29 splines for reliable connection
• Outboard and input shaft connection styles are splined for durability

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly line focuses on delivering direct-fit replacement axles that meet or exceed OEM specifications. Each assembly is designed to provide consistent performance and durability, featuring factory-balanced shafts to reduce vibrations and ensure smooth driveline operation. The 66-4096 part number is part of this line, offering compatibility with various vehicle makes and models requiring a 23.8125-inch compressed length and integrated ABS components.

Detailed Product Description

This Cardone CV Axle Assembly 66-4096 includes a 50-tooth ABS ring, essential for maintaining accurate wheel speed data to the vehicle’s ABS system. The stake-type axle nut locking mechanism ensures the axle remains securely fastened under driving conditions. Both input and output shafts feature splined connections, with the input shaft having 29 splines, providing a precise and durable fit. The axle shaft is factory inspected for run-out to minimize vibrations and improve driveline smoothness. This assembly is designed for vehicles requiring a compressed length of 23.8125 inches, making it suitable for specific front-wheel-drive or all-wheel-drive applications.

Common Applications and Problem Solving

• Replaces worn or damaged CV axle shafts causing clicking or grinding noises during turns
• Restores ABS functionality when the ABS ring or sensor signals are compromised
• Eliminates vibrations or wheel wobble caused by bent or unbalanced axles
• Addresses driveline shifting or clunking noises related to faulty CV joints
• Prevents premature wear from ruptured CV boots or broken bearing cages

Installation Notes and Tips

When installing the Cardone CV Axle Assembly 66-4096, avoid letting the axle shafts hang unsupported to prevent joint damage. Use a torque wrench to tighten the stake-type axle nut to manufacturer specifications; do not use an impact wrench on the retaining nut. Always replace axle nuts with new hardware as prevailing torque lock nuts should not be reused. Ensure the ABS sensor ring is properly aligned to avoid ABS warning lights after installation.

Quality Assurance and Warranty

Cardone CV Axle Assemblies undergo 100% run-out inspection to reduce vibrations and ensure smooth operation. The shafts are factory balanced and tested for durability. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship. Refer to Cardone’s official documentation for exact warranty terms.
