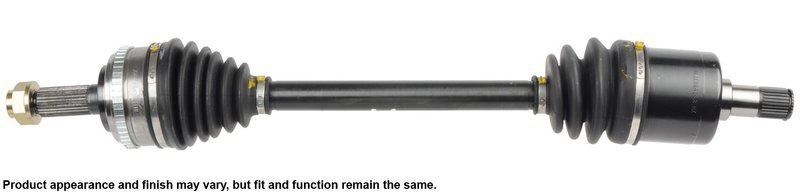

Cardone 66-4202 CV Axle Assembly - Front Left
| Brand | Cardone 66-4202 |
|---|---|
| Position | Front Left |
| ABS Ring Included | Yes |
| ABS Ring Tooth Count | 50 |
| Axle Nut Locking Type | Stake |
| Compressed Length (in) | 27.875 |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 29 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 28 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Product line | CV Axle Assembly |
| Fits | Honda and Acura · 4 vehicles |
OE-level performance. Engineered to meet or exceed original equipment standards.
Vibration-free operation. Each axle shaft is individually verified for straightness.
New axle nut included. Supplied for a hassle-free installation.
Cross-references Acura 44306S3VA52 and Honda 44306S9VA01 for the same application. See all 2.
Cardone CV Axle Assembly for Honda Pilot and Acura MDX
Restore smooth driveline operation with this Cardone CV axle assembly, part number 66-4202. It is built for front left applications on the 2003-2004 Honda Pilot and 2001-2002 Acura MDX, with an ABS ring included for proper wheel speed signal operation.
Key Features
- Fits 2003-2004 Honda Pilot, front left
- Fits 2001-2002 Acura MDX, front left
- ABS ring included with 50-tooth count
- New spindle nut included
- Stake-style axle nut locking type
- Compressed length: 27.875 in.
- Splined input shaft, 29 spline count
- Splined output shaft, 28 spline count
- New CV axle assembly from Cardone, part number 66-4202
Product Details
Cardone engineers its CV Drive Axle assemblies with attention to common failure points found in original units. This axle uses neoprene boots with added bellows where needed to reduce stress and help resist ozone cracking, while the shaft is individually checked for straightness to support vibration-free operation at speed. High-temperature grease, pneumatically crimped boot clamps, and precision-machined seal surfaces are used to support consistent sealing and long service life. This part cross-references Honda 44306S9VA01 and Acura 44306S3VA52 for the same application.
Common Problems This Part Can Address
- Clicking or snapping noises during turns
- Grease leakage around the axle boot or suspension area
- Front-end vibration during acceleration
- ABS warning light caused by axle sensor ring issues
- Grinding or binding from a worn CV joint
Installation Notes
- Do not let the axle hang unsupported during service.
- Use a torque wrench for the retaining nut and follow manufacturer specifications.
- Do not reuse a prevailing-torque lock nut; install the new nut supplied with the axle.
- Replace transaxle seals when installing a new CV axle assembly.
- If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.
Quality Assurance
Cardone verifies CV axle shafts for straightness and runout to help reduce vibration concerns. The brand’s engineering process focuses on correcting common OE failure causes, including boot cracking and seal-related wear, to deliver dependable driveline performance. Part number 66-4202 is a new CV axle assembly for front left service on the Honda Pilot and Acura MDX.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Honda | Pilot | Front Left | CV Axle Assembly |
| 2003 | Honda | Pilot | Front Left | CV Axle Assembly |
| 2002 | Acura | MDX | Front Left | CV Axle Assembly |
| 2001 | Acura | MDX | Front Left | CV Axle Assembly |
| No rows match your filter. | ||||
