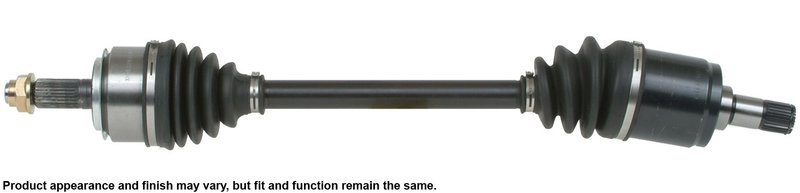

Cardone 66-4217 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Honda Accord

The Cardone 66-4217 CV axle assembly is built for 2003-2007 Honda Accord front left applications. It is engineered with attention to shaft straightness, boot durability, and seal integrity to support smooth driveline operation and reduce common repeat-failure points.

Key Features

• Fits 2003-2007 Honda Accord, front left
• ABS ring included for proper sensor signal integration
• New axle retaining nut supplied for installation
• Stake-style axle nut locking type
• 27-spline input shaft and 26-spline output shaft
• Compressed length: 26 in.
• Neoprene boots with added bellows where needed to resist cracking and stress
• Pneumatically crimped boot clamps for a tight boot-to-housing seal
• High-temperature, high-torque grease for driveline service
• Precision-machined transmission seal diameter after heat treatment

Product Details

Cardone CV axle assemblies are engineered from testing and remanufacturing experience focused on the causes of original axle failure. For this Honda Accord CV axle assembly, the shaft is individually verified for straightness to help reduce vibration at speed, while the boot design and clamp method are intended to support long-term joint protection. The Cardone 66-4217 is a direct driveline replacement for front left Honda Accord applications and is cross-referenced to Honda 44306SDAA01 and 44306SDCA01 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noise during hard turns and acceleration
• Grease leakage around the axle boot or underbody
• Vibration during acceleration or at road speed
• ABS warning light caused by axle sensor ring or related damage
• Grinding or wobble from a worn outer CV joint

Installation Notes and Tips

• Fits 2003-2007 Honda Accord, front left
• Do not let the CV axle hang unsupported during service; support the shaft to avoid inner joint damage
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification
• Do not reuse a prevailing-torque lock nut; replace it with the supplied new nut
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and wiring for damage

Quality Assurance

Cardone designs its CV drive axles around known failure points such as boot cracking, seal wear, and shaft runout. Each shaft is checked for straightness to support vibration-free operation, and the boot and grease package are selected for driveline heat and torque demands. This part number, 66-4217, is built as a new replacement assembly for Honda Accord front left service.
