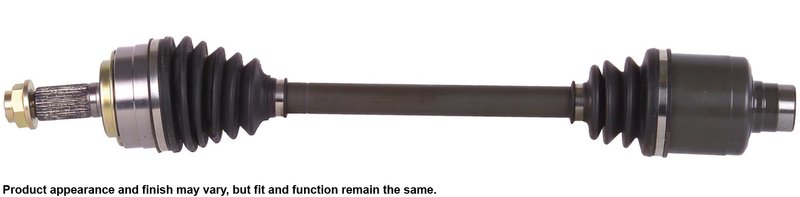

Cardone 66-4225 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Honda Front Right

Cardone 66-4225 is a new CV axle assembly engineered for front right applications on select Honda models. It is built for 2005-2010 Honda Odyssey and 2006-2014 Honda Ridgeline fitments, with attention to straight shaft verification, seal life, and joint durability for smooth driveline operation.

Key Features

• Fits 2006-2014 Honda Ridgeline, front right
• Fits 2005-2010 Honda Odyssey, front right
• ABS ring included for proper wheel speed signal integration
• New spindle nut included for installation convenience
• Stake-style axle nut locking type
• Compressed length: 26.75 in.
• Splined input shaft: 29 spline count
• Splined output shaft: 30 spline count
• Neoprene boots with added bellows where needed to reduce stress and cracking
• Boot clamps are pneumatically crimped for a secure boot-to-housing seal
• High-temperature, high-torque grease for driveline service demands

Product Details

Cardone CV axle assemblies are engineered from testing and remanufacturing experience to address common failure points found in original drive axles. The shaft is individually verified for straightness to help reduce vibration, while the transmission seal diameter is precision-machined after heat treatment to support proper sealing and longer seal life. For Honda Odyssey and Honda Ridgeline front right service, Cardone 66-4225 provides an OE-style driveline replacement built around fit, seal integrity, and stable operation.

This part cross-references Honda 44305SHJA01 and 44305SHJC01 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns from a worn outer CV joint
• Grease on the chassis or suspension from a ruptured CV boot
• Vibration during acceleration caused by a bent or out-of-runout axle shaft
• ABS warning light after axle replacement when the sensor ring is damaged or missing
• Thumping or driveline shake related to axle wear or joint imbalance

Installation Notes

• Do not let the CV axle hang unsupported during service; support the shaft to avoid inner joint damage.
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse the old prevailing-torque lock nut; install the new nut supplied with the axle.
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone applies inspection and engineering controls to help deliver consistent CV axle performance, including 100% shaft run-out verification on shafts used in remanufacturing and straightness checks for vibration control. The brand’s CV axle design also focuses on boot durability, seal life, and joint protection to support reliable service in Honda front right applications.
