OE Quality
60-Day Returns

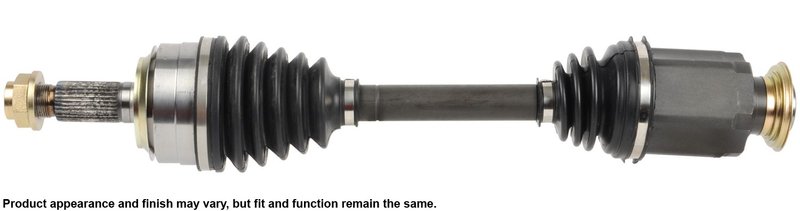

Cardone 66-4257 CV Axle Assembly - Front Right
Honda CR-V Front Right CV Axle Assembly
Restore smooth driveline operation with this Cardone CV axle assembly for the front right position. Built for 2007-2014 Honda CR-V applications, part number 66-4257 is engineered to address common axle wear concerns while supporting vibration-free performance at speed.
Key Features
- Fits 2007-2014 Honda CR-V, front right
- Cardone CV Axle Assembly, part number 66-4257
- ABS ring included for proper wheel speed signal operation
- New spindle nut included for service convenience
- Stake-style axle nut locking type
- Compressed length: 22.0625 in.
- 27-spline input shaft and 30-spline output shaft
- Neoprene boots with added bellows where needed to help resist stress and ozone cracking
- Boot clamps are pneumatically crimped for a secure seal
- High-temperature, high-torque grease is used for durable joint lubrication
- Shafts are individually verified for straightness to help reduce vibration
Detailed Description
Cardone CV axle assemblies are engineered from testing and remanufacturing experience focused on the causes of original axle failure. For the Honda CR-V front right application, this axle is built to deliver OE-style fit and dependable driveline operation, with attention to boot durability, shaft straightness, and seal integrity. The Cardone 66-4257 is a practical replacement for worn or noisy front axle assemblies on 2007-2014 Honda CR-V models.
This part cross-references Honda 44305SWA900 and 44305T0AA00 for the same application.
What It Helps Fix
- Clicking or snapping noises during turns
- Grease leakage around the axle boot or suspension area
- Front-end vibration during acceleration
- Wobble or shudder while driving
- ABS warning light issues related to axle sensor ring damage or signal disruption
Installation Notes and Tips
- Fits 2007-2014 Honda CR-V, front right
- Do not let the axle hang unsupported during service; this can damage the inner joint
- Use a torque wrench on the retaining nut and tighten to manufacturer specifications
- Do not reuse a prevailing-torque lock nut; install the supplied new spindle nut
- Replace transaxle seals when servicing CV axle assemblies to help prevent leaks
- Inspect the ABS sensor, wiring, and ring during installation to avoid warning light concerns
Quality Assurance
Cardone designs these CV drive axles to address common failure points seen in original equipment units, including boot cracking, seal wear, and shaft runout. Each shaft is checked for straightness to support smooth operation, and the assembly is built with materials selected for long-term driveline service.
| Brand | Cardone |
|---|---|
| Part Number | 66-4257 |
| Position | CV Axle Assembly, Front Right |
| ABS Ring Included | Yes |
| Axle Nut Locking Type | Stake |
| Compressed Length (in) | 22.0625 |
| E-Waste | No |
| FAQs | Are the cv drive axle shafts balanced at the factory? |
| FAQs | Can i let the cv drive axles hang while i am working on the car? |
| FAQs | I hear a grinding noise from the front end while driving and see |
| FAQs | I installed a replacement cv drive axle and now my abs light is o |
| FAQs | I removed both cv drive axles at the same time and now i am havin |
| FAQs | Is it ok to use an impact hammer to install the retaining nut? |
| FAQs | Never allow the cv drive axles to hang unsupported. this can lead |
| FAQs | Never use an impact wrench to install the retaining nut on the cv |
| FAQs | No! a prevailing torque lock nut should never be reused. always d |
| FAQs | Shafts are inspected 100% for run out to prevent vibrations. |
| FAQs | The cv drive axle outboard joint stub shaft is stuck in the hub a |
| FAQs | The most likely cause is a broken bearing cage due to excessive t |
| FAQs | The most likely cause is a defective or worn outer cv drive axle |
| FAQs | The most likely cause is the drive train shifting in the chassis |
| FAQs | The most likely problem is the outer cv drive axle boot has ruptu |
| FAQs | The old cv drive axle has a locking style (prevailing torque) nut |
| FAQs | The wheels wobble when i make a turn. what's the problem? |
| FAQs | When i cut the wheel hard and step on the gas, i hear loud clicki |
| FAQs | When i replace the cv drive axles, should i reuse the old seals? |
| FAQs | When i step on the gas, i hear a loud thump and feel a bad vibrat |
| FAQs | When replacing cv drive axle assemblies, always install new trans |
| FAQs | When the replacement drive axle was installed, the sensor ring, s |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 27 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 30 |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Honda | CR-V | Front Right | CV Axle Assembly |
| 2013 | Honda | CR-V | Front Right | CV Axle Assembly |
| 2012 | Honda | CR-V | Front Right | CV Axle Assembly |
| 2011 | Honda | CR-V | Front Right | CV Axle Assembly |
| 2010 | Honda | CR-V | Front Right | CV Axle Assembly |
| 2009 | Honda | CR-V | Front Right | CV Axle Assembly |
| 2008 | Honda | CR-V | Front Right | CV Axle Assembly |
| 2007 | Honda | CR-V | Front Right | CV Axle Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
