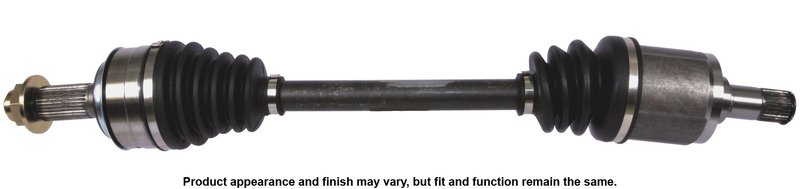

Cardone 66-4344 CV Axle Assembly - Front Left
| Brand | Cardone 66-4344 |
|---|---|
| Position | Front Left |
| ABS Ring Included | No |
| Axle Nut Locking Type | Stake |
| Compressed Length (in) | 26.629 |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 27 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 30 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Product line | CV Axle Assembly |
| Fits | Honda · 2 vehicles |
OE-level performance. Engineered to meet or exceed original equipment standards.
Neoprene boots. Added bellows help resist stress and cracking for longer boot life.
Straightness verified. Each shaft is individually checked for vibration-free performance.
Cross-references Honda 44306T1WA01 for the same application. See all 1.
Honda CR-V Front Left CV Axle Assembly
Restore driveline performance with the Cardone CV Axle Assembly 66-4344 for select Honda CR-V applications. This new front left axle is engineered for smooth power transfer, stable operation, and reduced vibration in daily driving.
Key Features
- Fits 2015-2016 Honda CR-V, front left
- Cardone CV Axle Assembly 66-4344 for driveline and axle service
- Splined input shaft connection with 27 splines
- Splined output shaft connection with 30 splines
- New axle retaining nut included for installation convenience
- Neoprene boots use added bellows where needed to help resist stress and ozone cracking
- Boot clamps are pneumatically crimped for a secure seal
- High-temperature, high-torque grease supports long-term joint performance
- Shafts are individually verified for straightness to help reduce vibration
- ABS ring not included
Product Details
Cardone 66-4344 is a new CV axle assembly built for front left service on the 2015-2016 Honda CR-V. CARDONE applies its CV driveline engineering experience to address common failure points such as boot cracking, seal wear, and shaft runout. The axle uses a precision-machined transmission seal diameter after heat treatment to support proper sealing and long service life. This part cross-references Honda 44306T1WA01 for the same application.
Common Problems This Part Can Address
- Clicking or snapping during turns from a worn outer CV joint
- Grease leakage from a ruptured CV boot
- Vibration during acceleration caused by shaft runout or imbalance
- Thumping or driveline shake from a failing axle assembly
- ABS warning light issues after axle replacement when sensor components are disturbed
Installation Notes
- Fits 2015-2016 Honda CR-V, front left
- Do not let the CV axle hang unsupported during service
- Use a torque wrench on the retaining nut and tighten to manufacturer specifications
- Do not reuse a prevailing-torque axle nut; replace it with the supplied nut
- Install new transaxle seals when replacing CV drive axle assemblies
- Inspect nearby ABS sensor wiring and sensor rings before final assembly
Quality Assurance
Cardone CV Drive Axles are built using inspection and engineering processes focused on OE-level performance. Each shaft is checked for straightness to help deliver vibration-free operation at speed, and the boot and grease design are selected to support durability in demanding driveline conditions. Part number 66-4344 is a new assembly for dependable replacement service on the Honda CR-V.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Honda | CR-V | 2.4L | L4 | Front Left | CV Axle Assembly |
| 2015 | Honda | CR-V | 2.4L | L4 | Front Left | CV Axle Assembly |
