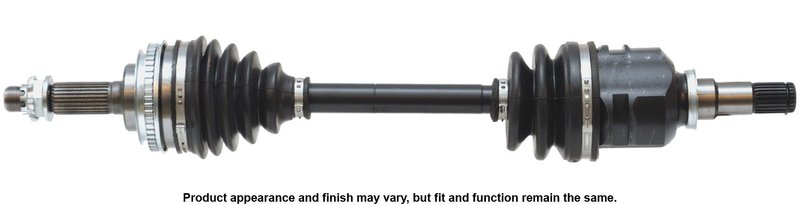

Cardone 66-5098 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Toyota Celica

Restore driveline performance with the Cardone 66-5098 CV axle assembly for the front left position on select 1994-1997 Toyota Celica models. This new CV axle is built with attention to fit, seal integrity, and smooth operation for everyday driving.

Key Features

• Fits 1994-1997 Toyota Celica, front left
• Cardone CV Axle Assembly, part number 66-5098
• ABS ring included with 48 teeth
• New axle retaining nut and spindle nut included
• Splined input shaft with 23 splines
• Splined output shaft with 26 splines
• Compressed length: 24.625 in.
• Neoprene boots with added bellows where needed to reduce stress and cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease used for joint durability
• Transmission seal diameter is precision-machined after heat treatment

Product Details

Cardone engineers its CV drive axles using testing and dimensional verification focused on OE-level performance. The shaft is individually checked for straightness to help reduce vibration, while the boot design and sealing details are aimed at limiting common failure points such as cracking, grease loss, and contamination. For Toyota Celica owners searching for a front left CV axle assembly, 66-5098 provides the correct driveline configuration for the listed applications.

This part cross-references Toyota 4342020401 and 4342020481 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns
• Grease leakage around a torn outer CV boot
• Front-end vibration caused by axle runout or shaft distortion
• ABS warning light triggered by a damaged sensor ring or related axle hardware
• Thumping or shuddering under acceleration from a worn CV joint

Installation Notes

Never let the CV axle hang unsupported during service, as this can damage the inner joint. Use a torque wrench on the retaining nut and follow the vehicle manufacturer’s torque specification; do not use an impact wrench for final installation. Replace the old prevailing-torque nut rather than reusing it, and install new transaxle seals when replacing CV drive axle assemblies. If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone’s CV axle engineering process includes straightness verification and sealing-focused boot design to help deliver vibration-free operation and consistent driveline performance. The 66-5098 is a new part built for the listed Toyota Celica front left application.
