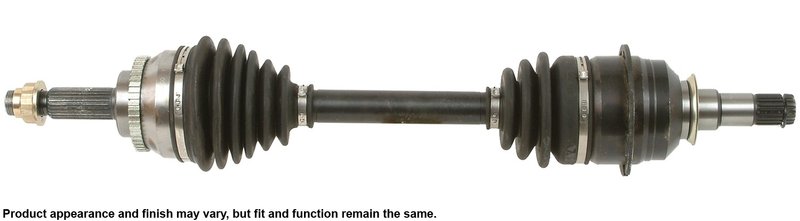

Cardone 66-5202 CV Axle Assembly - Front Left

Overview of Cardone CV Axle Assembly 66-5202 for Toyota Celica

The Cardone CV Axle Assembly 66-5202 is designed specifically for Toyota Celica models, providing reliable driveline performance. This CV axle assembly includes an ABS ring and features a stake-type axle nut locking system for secure installation.

• Includes ABS ring with 48 teeth for accurate wheel speed sensor readings
• Stake-type axle nut locking for secure fitment
• Compressed length of 24.9375 inches for precise fit
• Splined input and output shaft connection styles for compatibility
• 20 spline count on input shaft for proper engagement

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly product line focuses on delivering complete constant velocity axle solutions that meet or exceed OEM specifications. These assemblies are engineered to provide balanced shafts inspected for run-out to reduce vibrations and ensure smooth driveline operation. The inclusion of ABS rings in assemblies like part number 66-5202 supports proper ABS sensor function, which is critical for vehicle safety systems.

Detailed Product Description

This Cardone CV Axle Assembly 66-5202 is built to fit Toyota Celica vehicles requiring a 24.9375-inch compressed length axle. The assembly features splined input and output shafts with 20 splines on the input side, ensuring a secure and precise connection to the drivetrain components. The included ABS ring with 48 teeth integrates seamlessly with the vehicle’s anti-lock braking system, maintaining accurate wheel speed data. The stake-type axle nut locking mechanism prevents loosening during operation, enhancing safety and reliability.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Toyota Celica
• Eliminating front-end grinding noises caused by faulty CV joints
• Resolving ABS warning lights triggered by damaged or missing ABS rings
• Fixing vibrations or wheel wobble during turns due to axle imbalance
• Addressing clicking noises when accelerating or turning hard

Installation Notes and Tips

• Never allow CV axles to hang unsupported during installation to avoid joint damage
• Do not reuse the original axle nut; always install a new stake-type locking nut
• Avoid using impact wrenches on the retaining nut to prevent damage
• Ensure the ABS ring is properly seated to maintain sensor accuracy
• Inspect axle shafts for run-out before installation to prevent vibrations

Quality Assurance and Warranty

Cardone CV Axle Assembly 66-5202 undergoes 100% inspection for run-out to minimize vibrations and ensure smooth operation. The assembly is manufactured to meet OEM standards, including the integration of ABS components. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
