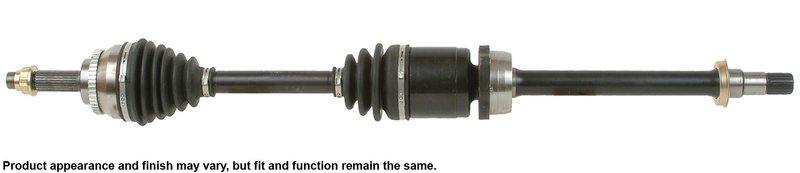

Cardone 66-5204 CV Axle Assembly - Front Right

Overview of Cardone CV Axle Assembly 66-5204

The Cardone CV Axle Assembly 66-5204 is designed specifically for Toyota Celica and Corolla models. This CV axle assembly includes an ABS ring with 48 teeth and features a stake-type axle nut locking mechanism, ensuring secure and reliable driveline performance.

• Includes ABS ring with 48 teeth for accurate wheel speed sensor readings
• Stake-type axle nut locking for secure installation
• Compressed length of 36 inches for precise fitment
• Splined input and output shaft connection styles for compatibility
• Compatible with Toyota Celica and Corolla models

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly product line focuses on delivering complete CV axle solutions that meet OEM specifications. Each assembly is engineered to provide balanced shafts and includes necessary components such as ABS rings to maintain vehicle safety systems. The 66-5204 part number is part of this line, offering a direct replacement for Toyota Celica and Corolla driveline needs.

Detailed Product Description

This CV axle assembly features a 36-inch compressed length and uses splined connections on both input and output shafts, with 20 splines on the input shaft. The included ABS ring with 48 teeth supports the vehicle’s anti-lock braking system by providing accurate wheel speed data. The stake-type axle nut locking mechanism ensures the axle remains securely fastened during operation. This assembly is designed to replace worn or damaged CV axles on compatible Toyota Celica and Corolla models, restoring driveline integrity and smooth power transfer.

Common Applications and Problem Solving

• Replaces worn or damaged CV axles causing vibrations or clicking noises
• Restores ABS sensor functionality with included ABS ring
• Eliminates wheel wobble or instability during turns
• Addresses grinding noises from front-end driveline components
• Prevents drivetrain shifting issues related to faulty CV joints

Installation Notes and Tips

• Never allow CV axles to hang unsupported during installation to avoid joint damage
• Do not reuse the original prevailing torque lock nut; always install a new axle nut
• Avoid using impact wrenches on the retaining nut to prevent damage
• Ensure new transmission seals are installed when replacing CV axle assemblies
• Verify ABS ring alignment to prevent ABS warning lights after installation

Quality Assurance and Warranty

Each Cardone CV Axle Assembly 66-5204 is inspected 100% for run-out to minimize vibrations and ensure smooth operation. The shafts are factory balanced to meet performance standards. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
