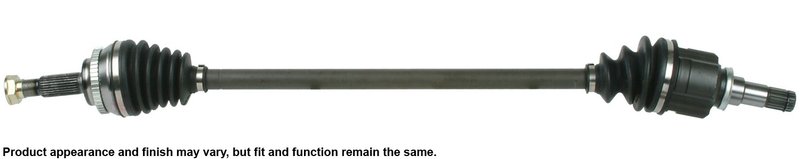

Cardone 66-5267 CV Axle Assembly - Front Right

Overview of Cardone CV Axle Assembly 66-5267 for Toyota Prius

The Cardone CV Axle Assembly 66-5267 is designed specifically for Toyota Prius models, providing reliable driveline performance. This CV axle assembly includes an ABS ring and is engineered to meet factory specifications for fit and function.

• Includes ABS ring with 48 teeth for accurate wheel speed sensor readings
• Stake-type axle nut locking mechanism for secure installation
• Compressed length of 36.125 inches to match Toyota Prius drivetrain requirements
• Splined input and output shaft connection styles with 20 splines on input shaft
• Factory-balanced shafts to reduce vibrations and ensure smooth operation

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly product line focuses on delivering complete constant velocity axle solutions that integrate critical components such as ABS rings and locking nuts. This ensures compatibility with vehicle safety systems and secure fitment. The 66-5267 part number is part of this line, designed to provide a direct replacement for Toyota Prius driveline needs without requiring modifications.

Detailed Product Description

This CV axle assembly is engineered with a stake-type axle nut locking system to maintain secure attachment under driving conditions. The included ABS ring with 48 teeth supports the vehicle’s anti-lock braking system by providing precise wheel speed data. The splined input and output shafts, each with 20 splines, ensure a proper fit with the Toyota Prius drivetrain components. At a compressed length of 36.125 inches, this axle assembly matches the exact dimensions required for proper installation and operation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle assemblies on Toyota Prius
• Eliminates front-end grinding noises caused by faulty CV joints
• Resolves ABS warning light issues related to damaged or missing ABS rings
• Corrects vibrations and wheel wobble during turns due to axle imbalance
• Addresses clicking noises when accelerating or turning caused by CV joint wear

Installation Notes and Tips

• Never allow the CV drive axles to hang unsupported during installation to avoid joint damage
• Do not reuse the old axle nut; always install a new stake-type locking nut
• Avoid using impact wrenches on the retaining nut to prevent damage
• Ensure the ABS ring is properly aligned with the wheel speed sensor for accurate readings
• Inspect seals and replace transmission seals as needed when installing the new axle

Quality Assurance and Warranty

Each Cardone CV Axle Assembly 66-5267 undergoes 100% inspection for run-out to prevent vibrations and ensure smooth operation. The shafts are factory balanced and tested to meet OEM standards. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
