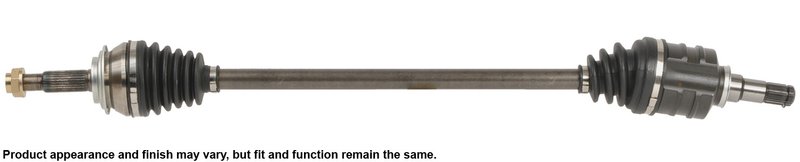

Cardone 66-5284 CV Axle Assembly - Front Right

Reliable CV Axle Assembly for Scion xD

The Cardone CV Axle Assembly 66-5284 is engineered to restore driveline performance for your Scion xD. Designed with precision, this axle assembly includes essential features like an ABS ring and stake-type axle nut locking for secure installation.

• Includes ABS ring for accurate wheel speed sensor operation
• Stake-type axle nut locking ensures secure fitment
• Compressed length of 35.83 inches for exact fit
• Splined input shaft with 20 splines and output shaft with 26 splines
• Compatible specifically with Scion xD models

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly line focuses on delivering complete axle solutions that meet or exceed OEM specifications. Each assembly is factory balanced and inspected for run out to minimize vibrations and ensure smooth driveline operation. This product line is designed to provide reliable replacement parts that maintain vehicle safety features such as ABS functionality, making it suitable for vehicles like the Scion xD.

Product Details and Specifications

This CV axle assembly features a splined input shaft with 20 splines and a splined output shaft with 26 splines, ensuring proper engagement with the drivetrain components. The axle nut locking type is stake, which provides a secure and permanent fastening method. The compressed length measures approximately 35.83 inches, matching the original equipment dimensions for the Scion xD. Additionally, the included ABS ring supports the vehicle’s anti-lock braking system by providing accurate wheel speed data.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Scion xD
• Eliminates front-end grinding noises caused by faulty CV joints
• Resolves vibrations and wheel wobble during turns
• Restores ABS sensor functionality when the ABS ring is damaged or missing
• Fixes clicking noises when accelerating or turning

Installation Notes and Tips

When installing the Cardone CV Axle Assembly 66-5284, avoid letting the CV axles hang unsupported to prevent joint damage. Use a torque wrench to tighten the stake-type axle nut to manufacturer specifications; do not use an impact wrench for this step. Always replace axle seals and locking nuts with new components to ensure proper fit and safety. The shaft is factory balanced to reduce vibrations, so handle carefully during installation.

Quality Assurance and Warranty

Cardone inspects each CV axle assembly 100% for run out to prevent vibrations and ensure smooth operation. The product includes an ABS ring to maintain vehicle safety systems. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
