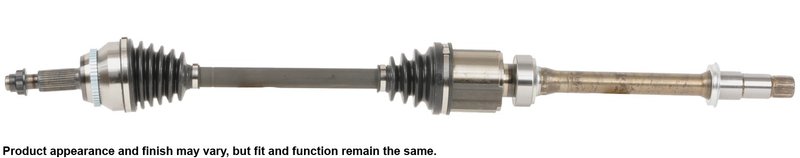

Cardone 66-5407 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Toyota Sienna

Restore smooth power delivery with this Cardone CV axle assembly, part number 66-5407, for the front right position on select Toyota Sienna models. Built for direct replacement service, it is engineered to address common driveline wear concerns while supporting vibration-free operation.

Key Features

• Fits 2011-2016 Toyota Sienna, front right
• Cardone CV Axle Assembly, part number 66-5407
• ABS ring included with 48-tooth count
• New spindle nut included
• Splined input shaft with 24 splines and splined output shaft with 30 splines
• Compressed length: 41.12 in.
• Stake-style axle nut locking type
• New unit with complete axle and instruction sheet
• Neoprene boot design with added bellows where needed to reduce stress and ozone cracking
• Individually verified for straightness to help maintain smooth, vibration-free performance

Product Details

Cardone engineers its CV Drive Axle assemblies around the failure points commonly seen in original equipment units. For Toyota Sienna front right axle replacement, this approach focuses on boot durability, seal integrity, and shaft straightness to help maintain consistent driveline performance. The axle uses high-temperature, high-torque grease and pneumatically crimped boot clamps to support a secure seal between the boot and housing. This part number 66-5407 is a direct-fit driveline solution for 2011-2016 Toyota Sienna applications requiring a front right CV axle assembly.

This part cross-references Toyota 4341008050 and 4341008070 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns from a worn outer CV joint
• Grease leakage around the axle boot from a ruptured or cracked boot
• Front-end vibration caused by axle runout or shaft straightness issues
• ABS warning light concerns after axle replacement when the sensor ring is damaged or incorrect
• Grinding or thumping from driveline wear in the front right axle assembly

Installation Notes and Tips

• Fits 2011-2016 Toyota Sienna, front right
• Do not let the CV axle hang unsupported during service; this can damage the inner joint
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications
• Do not reuse the prevailing torque lock nut; install the new spindle nut supplied with the axle
• Replace transaxle seals when installing a new CV axle assembly to help prevent leaks
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and wiring for damage

Quality Assurance

Cardone applies testing and engineering methods developed from CV axle failure analysis to improve durability and fit. Shafts are checked for straightness to support smooth operation, and the boot and seal design is built to reduce common causes of repeat failure in driveline service.
