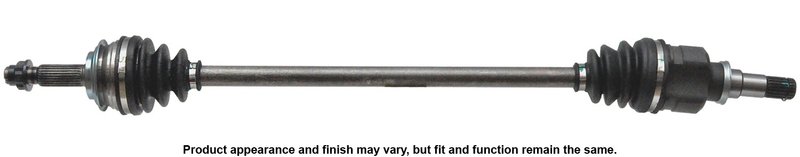

Cardone 66-5409 CV Axle Assembly - Front Right

Overview of Cardone CV Axle Assembly 66-5409 for Toyota Prius C

The Cardone CV Axle Assembly 66-5409 is designed specifically for Toyota Prius C models, providing reliable driveline performance. This CV axle assembly ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Toyota Prius C
• Compressed length: 35.813 inches
• Axle nut locking type: Stake
• Input shaft spline count: 20, splined connection
• Output shaft spline count: 26, splined connection
• ABS ring not included

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly product line focuses on delivering dependable CV components engineered to meet or exceed OEM specifications. Each assembly is designed to provide precise fitment and durability, ensuring consistent driveline performance for vehicles like the Toyota Prius C. This line emphasizes quality construction and thorough inspection to reduce vibrations and premature wear.

Detailed Product Description

This Cardone CV Axle Assembly 66-5409 features a compressed length of 35.813 inches, making it an exact fit for the Toyota Prius C. The axle nut locking type is stake, which requires proper installation techniques to ensure secure fastening. Both the input and output shafts use splined connections with 20 and 26 splines respectively, providing a solid mechanical interface with the transmission and wheel hub. Note that this assembly does not include an ABS ring, so it is compatible with vehicles that do not require this component.

Common Applications and Problem Resolution

• Replaces worn or damaged CV axle assemblies on Toyota Prius C
• Eliminates clicking or grinding noises during turns
• Resolves vibrations caused by axle shaft runout or joint wear
• Fixes wheel wobble issues related to CV joint failure
• Addresses driveline shifting or clunking noises under acceleration

Installation Notes and Tips

• Do not allow the CV axle to hang unsupported during installation to prevent joint damage
• Use a stake-type axle nut and avoid reusing prevailing torque lock nuts
• Do not use an impact wrench to install the retaining nut; torque to manufacturer specifications
• Inspect and replace transmission seals when installing new CV axle assemblies
• Ensure shafts are properly aligned and balanced to prevent vibrations

Quality Assurance and Warranty

Each Cardone CV Axle Assembly 66-5409 undergoes 100% run-out inspection to minimize vibrations and ensure smooth operation. The shafts are balanced at the factory to meet strict quality standards. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
