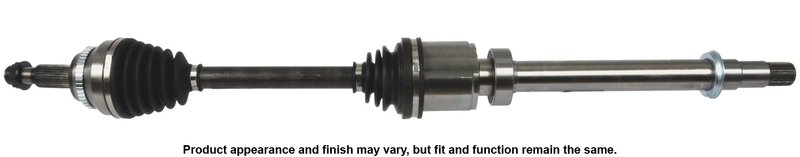

Cardone 66-5434 CV Axle Assembly - Front Right

Overview of Cardone CV Axle Assembly 66-5434 for Toyota Highlander

The Cardone CV Axle Assembly part number 66-5434 is designed specifically for Toyota Highlander models. This CV axle assembly includes an ABS ring and is engineered to meet precise fitment and performance standards for driveline and axle repairs.

• Includes ABS ring with 48 teeth for accurate wheel speed sensor readings
• Stake-type axle nut locking for secure installation
• Compressed length of approximately 39.63 inches for exact fit
• Splined input and output shaft connection styles with 24 splines on input shaft
• Compatible with Toyota Highlander driveline and axle systems

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly product line focuses on delivering reliable replacement CV axles that maintain factory specifications. These assemblies are designed to restore driveline function and ensure proper ABS sensor operation by including the ABS ring. The 66-5434 model is part of this line, providing a direct-fit solution for Toyota Highlander vehicles requiring CV axle replacement.

Detailed Product Description

This Cardone CV Axle Assembly 66-5434 features a stake-type axle nut locking mechanism to ensure the axle nut remains securely fastened during operation. The assembly includes a 48-tooth ABS ring, which is critical for the vehicle’s anti-lock braking system to function correctly. The compressed length of 39.63 inches matches the original equipment specifications, ensuring proper fitment without modification. Both input and output shafts are splined, with the input shaft having 24 splines, providing a secure connection to the transmission and wheel hub respectively.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axles on Toyota Highlander models
• Resolving front-end grinding noises caused by faulty CV joints
• Fixing ABS warning lights triggered by damaged or missing ABS rings
• Eliminating vibrations and wheel wobble during turns
• Addressing clicking noises when accelerating or turning

Installation Notes and Tips

• Never allow the CV drive axles to hang unsupported during installation to avoid joint damage
• Do not reuse the original prevailing torque lock nut; always install a new axle nut
• Avoid using impact wrenches on the retaining nut to prevent damage
• Ensure the ABS ring is properly aligned to maintain ABS sensor accuracy
• Inspect seals and replace if necessary when installing the new CV axle assembly

Quality Assurance and Warranty

Cardone CV Axle Assemblies undergo 100% inspection for run-out to prevent vibrations and ensure smooth operation. The shafts are balanced at the factory to meet OEM standards. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
