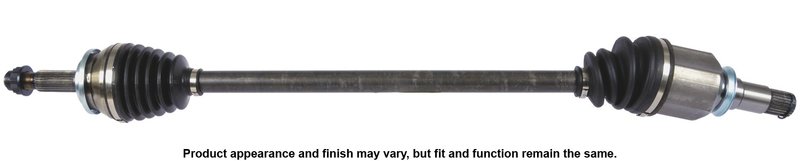

Cardone 66-5449 CV Axle Assembly - Front Right
| Brand | Cardone 66-5449 |
|---|---|
| Position | Front Right |
| ABS Ring Included | No |
| Axle Nut Locking Type | Stake |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 24 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 26 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Product line | CV Axle Assembly |
| Fits | Toyota · 18 vehicles |
OE-level performance. Engineered to meet or exceed original equipment standards.
Neoprene boots. Extra bellows help resist stress and ozone cracking.
Straightness verified. Each shaft is checked for vibration-free performance.
Cross-references Toyota 4341047040 for the same application. See all 1.
Front Right CV Axle for Toyota Corolla and Prius
Restore smooth power transfer with this Cardone CV Axle Assembly, part number 66-5449. It is built for front right applications on select Toyota Corolla, Prius, Prius AWD-e, and Prius Prime models, with engineering focused on reducing vibration, boot failure, and repeat axle issues.
Key Features
- New axle retaining nut included for a cleaner installation on the correct application
- Neoprene boots use added bellows where needed to reduce stress and ozone cracking
- Boot clamps are pneumatically crimped for a tight seal at the boot and housing
- High-temperature, high-torque grease supports long service life under driveline load
- Shafts are individually checked for straightness to help deliver vibration-free operation
- Transmission seal diameter is precision-machined after heat treatment for proper seal contact
- Splined input shaft connection with 24 input splines and 26 output splines
- Spindle nut included; ABS ring not included
Product Details
Cardone’s CV Axle Assembly line is engineered from extensive driveline testing and remanufacturing experience, with attention to the failure points that commonly affect original CV axles. For this application, the 66-5449 is a front right CV axle assembly for 2020 Toyota Corolla, 2016-2020 Toyota Prius, 2019-2020 Toyota Prius AWD-e, 2017-2020 Toyota Prius Prime, 2021-2022 Toyota Corolla, 2021-2022 Toyota Prius AWD-e, and 2021-2022 Toyota Prius Prime. This part cross-references Toyota 4341047040 for the same application.
Common Problems This Part Addresses
- Clicking or snapping noises during hard turns
- Grease on the chassis or suspension from a ruptured outer boot
- Vibration or thumping during acceleration
- Wobble or binding caused by a worn outer CV joint
- ABS warning light concerns after axle replacement when sensor components are damaged
Installation Notes
- Fits 2021-2022 Toyota Corolla, front right
- Fits 2021-2022 Toyota Prius AWD-e, front right
- Fits 2021-2022 Toyota Prius Prime, front right
- Fits 2020 Toyota Corolla, front right
- Fits 2016-2020 Toyota Prius, front right
- Fits 2019-2020 Toyota Prius AWD-e, front right
- Fits 2017-2020 Toyota Prius Prime, front right
- Do not let the axle hang unsupported during service, as this can damage the inner joint
- Use a torque wrench on the retaining nut and follow manufacturer torque specifications
- Do not reuse a prevailing-torque lock nut; install the supplied new nut
- Replace transaxle seals when servicing CV axle assemblies to help prevent leaks
Quality Assurance
Cardone verifies axle shafts for straightness and uses controlled boot and seal construction to support consistent driveline performance. The design approach targets common CV axle failure points to help reduce repeat repairs on Toyota Corolla and Prius front right applications.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Toyota | Corolla | FULL HYBRID EV-GAS (FHEV) | Front Right | New CV Axle Assembly |
| 2022 | Toyota | Prius AWD-e | — | Front Right | New CV Axle Assembly |
| 2022 | Toyota | Prius Prime | — | Front Right | New CV Axle Assembly |
| 2021 | Toyota | Corolla | FULL HYBRID EV-GAS (FHEV) | Front Right | New CV Axle Assembly |
| 2021 | Toyota | Prius AWD-e | — | Front Right | New CV Axle Assembly |
| 2021 | Toyota | Prius Prime | — | Front Right | New CV Axle Assembly |
| 2020 | Toyota | Corolla | ELECTRIC/GAS | Front Right | CV Axle Assembly |
| 2020 | Toyota | Prius | — | Front Right | CV Axle Assembly |
| 2020 | Toyota | Prius AWD-e | — | Front Right | CV Axle Assembly |
| 2020 | Toyota | Prius Prime | — | Front Right | CV Axle Assembly |
| 2019 | Toyota | Prius | — | Front Right | CV Axle Assembly |
| 2019 | Toyota | Prius AWD-e | — | Front Right | CV Axle Assembly |
| 2019 | Toyota | Prius Prime | — | Front Right | CV Axle Assembly |
| 2018 | Toyota | Prius | — | Front Right | CV Axle Assembly |
| 2018 | Toyota | Prius Prime | — | Front Right | CV Axle Assembly |
| 2017 | Toyota | Prius | — | Front Right | CV Axle Assembly |
| 2017 | Toyota | Prius Prime | — | Front Right | CV Axle Assembly |
| 2016 | Toyota | Prius | — | Front Right | CV Axle Assembly |
