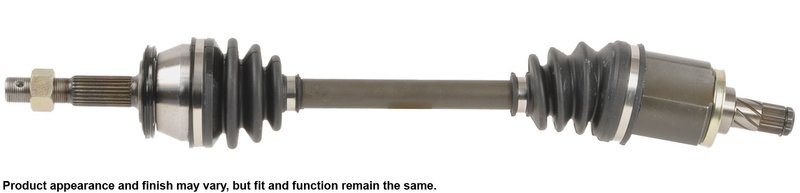

Cardone 66-6000 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Nissan Front Left

Cardone CV Axle Assembly 66-6000 is a new front left driveline replacement for select 1987-1990 Nissan Pulsar NX and Nissan Sentra applications. Built for OE-style fit and vibration-free operation, it addresses common CV axle wear issues with engineering focused on boot durability, shaft straightness, and seal performance.

Key Features

• Fits 1987-1990 Nissan Pulsar NX, front left
• Fits 1987-1990 Nissan Sentra, front left
• ABS ring included for vehicles equipped with wheel speed sensing
• Castle-style axle nut and spindle nut included
• New axle retaining nut supplied for easier service
• Neoprene boots use added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease supports long service life
• Shafts are individually checked for straightness to reduce vibration
• Input shaft: 24 splines; output shaft: 25 splines

Product Details

Cardone 66-6000 is engineered from the company’s CV axle testing and remanufacturing experience to address common failure points seen in original driveline components. The axle shaft is verified for runout and straightness, helping maintain smooth operation at speed, while the boot design and seal details are focused on resisting the cracking, leakage, and contamination that often lead to repeat CV joint failure. This part cross-references Nissan 3910155A00 for the same application.

Common Problems This Axle Can Address

• Clicking or snapping during hard turns
• Grease leakage around the axle boot or chassis
• Front-end vibration during acceleration
• ABS warning light after axle replacement
• Noise from a worn outer CV joint or damaged boot

Installation Notes

Fits 1987-1990 Nissan Pulsar NX, front left, and 1987-1990 Nissan Sentra, front left. Do not let the axle hang unsupported during service, as this can damage the inner joint. Use a torque wrench on the retaining nut and tighten to the manufacturer specification; do not use an impact wrench for final installation. Replace the old prevailing-torque nut rather than reusing it, and install new transaxle seals when replacing CV axle assemblies. If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone designs this CV axle assembly to meet or exceed original equipment performance targets through application-specific engineering, boot design improvements, and 100% shaft straightness verification. Part number 66-6000 is a new component supplied for direct replacement service on the listed Nissan applications.
