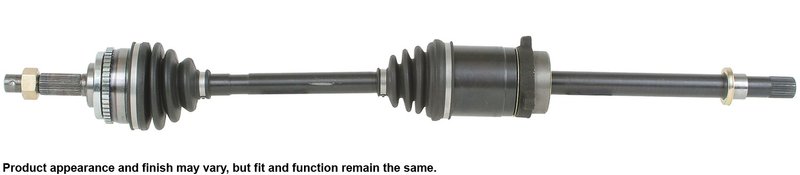

Cardone 66-6049 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Nissan Maxima

Restore smooth driveline operation with this Cardone CV axle assembly, part number 66-6049. It is built for the front right position on 1989-1994 Nissan Maxima applications and is engineered to deliver vibration-free performance with OE-style fit and function.

Cardone’s CV axle engineering focuses on the failure points that commonly affect replacement axles, including boot durability, seal life, and shaft straightness. This makes 66-6049 a practical choice for a Nissan Maxima front right CV axle replacement when you need a direct driveline repair.

Key Features

• Fits 1989-1994 Nissan Maxima, front right
• Cardone CV Axle Assembly, part number 66-6049
• New axle retaining nut supplied for easier installation
• Neoprene boots with added bellows where needed to help resist cracking and stress
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease helps support long service life
• Shafts are individually verified for straightness to reduce vibration
• ABS ring included with 46 teeth
• Splined input and output shaft connection style, 27 spline count each
• Compressed length: 38 in.

Product Details

This CV axle assembly is designed for front right Nissan Maxima driveline service and is built around Cardone’s remanufacturing and engineering process. The axle uses precision-machined transmission seal diameter finishing after heat treatment to help promote seal life, while the ABS ring and spline configuration support proper sensor and hub engagement on the listed application. Part number 66-6049 is also referenced under Nissan OE numbers 3910085E00 and 3910085E10 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns from a worn outer CV joint
• Grease leakage around the axle boot from a ruptured boot
• Front-end vibration caused by a bent or out-of-runout axle shaft
• ABS warning light issues after axle replacement when the sensor ring is not correct
• Clunking or thumping during acceleration from driveline wear

Installation Notes

• Fits 1989-1994 Nissan Maxima, front right.
• Do not let the CV axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to the manufacturer specification.
• Replace the old prevailing-torque lock nut rather than reusing it.
• Install new transaxle seals when replacing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone builds this CV axle assembly using inspection and engineering practices aimed at reducing repeat failure. Shafts are checked for straightness, and the boot and seal details are designed to support reliable driveline operation in the listed Nissan Maxima applications. Part number 66-6049 is a direct-fit replacement for front right service on 1989-1994 Nissan Maxima models.
