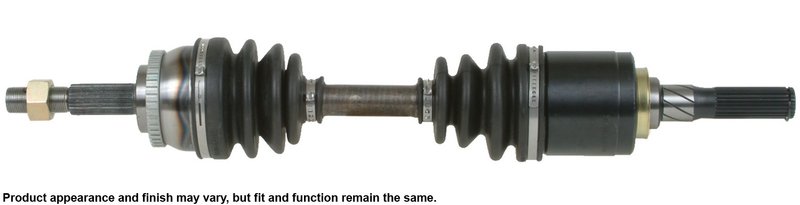

Cardone 66-6061 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Nissan Front Left

Cardone 66-6061 is a new CV axle assembly engineered for front left applications on select Nissan compact cars. It is built for 1991-1994 Nissan Sentra, 1991-1993 Nissan NX, and 1995-1997 Nissan 200SX front left positions, with fitment-focused details that support smooth driveline operation and consistent ABS function.

Key Features

• Fits 1995-1997 Nissan 200SX, front left
• Fits 1991-1994 Nissan Sentra, front left
• Fits 1991-1993 Nissan NX, front left
• ABS ring included with 42 teeth for proper speed signal operation
• New axle retaining nut and spindle nut included
• Splined 25-tooth input and output shaft connections
• Compressed length: 23.8125 in.
• Neoprene boot design with added bellows where needed to reduce stress and cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease is used for long-term joint protection

Product Details

Cardone 66-6061 is part of the Cardone CV Axle Assembly line, a driveline-focused product range built around OE-style performance requirements. The axle shaft is individually checked for straightness to help reduce vibration, and the transmission seal diameter is precision-machined after heat treatment to support proper sealing and long service life. This part cross-references Nissan 391010M816 and 3910164Y00 for the same application.

For Nissan Sentra, Nissan NX, and Nissan 200SX front left replacement needs, this CV axle assembly addresses common driveline wear points while maintaining the correct ABS ring configuration and spline count for the listed vehicles. Part number 66-6061 is a direct-fit replacement for the confirmed applications shown above.

Common Problems This Part Can Help Solve

• Clicking or snapping noises during turns from a worn outer CV joint
• Grease leakage around the axle boot from a ruptured boot
• Front-end vibration caused by a bent or out-of-spec axle shaft
• ABS warning light issues related to a damaged or incorrect sensor ring
• Grinding or binding from a worn driveline joint

Installation Notes and Tips

• Fits 1995-1997 Nissan 200SX, front left; 1991-1994 Nissan Sentra, front left; and 1991-1993 Nissan NX, front left.
• Do not let the axle hang unsupported during service; support the assembly to avoid joint damage.
• Use a torque wrench on the retaining nut and follow the vehicle manufacturer’s torque specification.
• Do not reuse a prevailing-torque lock nut; install the supplied new nut.
• Replace transaxle seals when servicing CV drive axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone engineers and tests CV drive axles to meet or exceed OE performance targets, with 100% run-out inspection on shafts used in remanufacturing and straightness verification on axle shafts for vibration control. The brand’s CV axle design process also addresses common failure causes such as boot cracking and seal wear to support dependable service in the listed Nissan applications.
