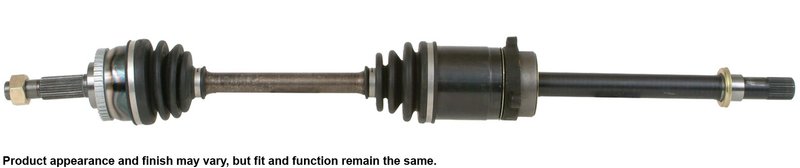

Cardone 66-6140 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Nissan Altima

Cardone CV Axle Assembly 66-6140 is a new front right driveline replacement for select Nissan Altima applications. It is engineered for smooth, vibration-free operation and built with details that address common CV axle failure points.

Compatible with 1993 Nissan Altima, front right without locking differential, and 1994-1997 Nissan Altima, front right. This Cardone CV axle assembly is a direct-fit driveline service part for Nissan Altima front axle repair.

Key Features

• Part number 66-6140 CV axle assembly for front right applications
• ABS ring included with 44-tooth count
• New spindle nut included
• Splined input and output shaft connection style with 27 splines on each end
• Neoprene boots with added bellows where needed to resist stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure boot-to-housing seal
• High-temperature, high-torque grease for demanding driveline conditions
• Shafts are individually verified for straightness to help reduce vibration
• Transmission seal diameter is precision-machined after heat treatment for proper seal life

Detailed Description

Cardone designs its CV Drive Axle assemblies around the failure modes commonly seen in original equipment units. For this application, the axle is built to support consistent driveline performance in Nissan Altima front right service, with attention to boot durability, shaft straightness, and joint sealing. The result is a replacement axle intended to restore smooth power transfer and stable operation under everyday driving loads.

Part number 66-6140 is also referenced for Nissan 391002B000, 391002B010, 391002B100, and 391002B110 applications. The Cardone CV Axle Assembly line focuses on engineering details that help reduce repeat failure, including improved boot design and verified shaft runout control.

What It Helps Fix

• Clicking or snapping noises during turns
• Grease leakage around the axle boot or chassis
• Front-end vibration during acceleration
• Wobble or shudder while driving
• ABS warning light issues related to axle sensor ring damage or signal disruption

Installation Notes and Tips

• Fits 1993 Nissan Altima, front right without locking differential, and 1994-1997 Nissan Altima, front right.
• Do not let the CV axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications.
• Do not reuse a prevailing-torque lock nut; install the new spindle nut supplied with the axle.
• Replace transaxle seals when servicing CV drive axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone applies testing and engineering methods developed from CV axle remanufacturing experience to support OE-level performance targets. Each shaft is checked for straightness, and the assembly uses materials and sealing details selected to address common driveline wear points.
