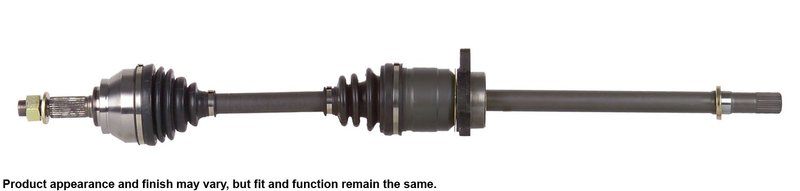

Cardone 66-6245 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Nissan Murano

Restore smooth power transfer with this Cardone CV axle assembly, part number 66-6245, for the front right position on select 2003-2007 Nissan Murano models. Built for direct replacement service, it is engineered to address common CV axle wear concerns while supporting vibration-free operation.

Key Features

• Fits 2003-2007 Nissan Murano, front right
• Cardone CV Axle Assembly, part number 66-6245
• ABS ring included for proper wheel speed signal operation
• New axle retaining nut supplied for installation
• 29-spline input shaft and 29-spline output shaft
• Compressed length: 39.875 in.
• Neoprene boots use added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease supports long service life
• Shafts are individually checked for straightness to help reduce vibration

Product Details

Cardone designs its CV Drive Axles using testing and engineering methods focused on the failure points seen in original units. For the Nissan Murano front right application, this axle assembly is built with a splined 29-tooth input and output connection, an included ABS ring, and precision-verified shaft straightness for smoother operation at speed. The Cardone 66-6245 is a practical replacement for drivers addressing worn joints, damaged boots, or driveline vibration on 2003-2007 Nissan Murano vehicles.

This part cross-references Nissan 39100CA100 and 39100CC20A for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns
• Grease leakage from a torn or cracked CV boot
• Front-end vibration during acceleration
• ABS warning light caused by axle sensor ring or wiring damage
• Grinding or binding from a worn outer or inner CV joint

Installation Notes and Tips

• Fits 2003-2007 Nissan Murano, front right
• Do not let the axle hang unsupported during service; this can damage the inner joint
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications
• Do not reuse a prevailing-torque lock nut; install the supplied new nut
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks
• Inspect the ABS sensor, ring, and nearby wiring during installation to avoid warning light issues

Quality Assurance

Cardone applies 100% shaft run-out inspection to help prevent vibration and uses precision-machined seal surfaces after heat treatment to support seal life. The brand’s CV axle engineering focuses on reducing repeat failure by addressing boot stress, contamination entry, and shaft straightness.
