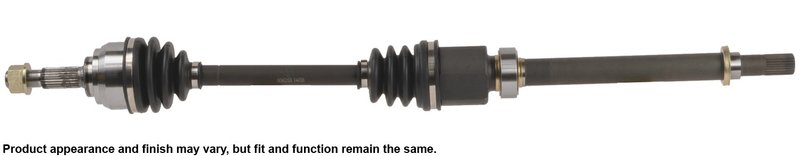

Cardone 66-6253 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Nissan Front Right

Cardone 66-6253 is a new CV axle assembly for the front right position on select Nissan Cube and Nissan Versa models. Built for direct replacement service, it combines a splined 25-tooth input and output shaft connection with an included ABS ring, spindle nut, and axle nut locking type standard fitment details for a cleaner repair.

Fits 2009-2014 Nissan Cube, front right. Fits 2007-2012 Nissan Versa, front right. This Cardone CV axle assembly is engineered for drivers replacing a worn or noisy front axle on these Nissan applications.

Key Features

• Cardone CV Axle Assembly, part number 66-6253
• New product condition with complete axle and instruction sheet
• ABS ring included for vehicles equipped with wheel speed sensing at the axle
• Spindle nut included for service convenience
• 25-spline input shaft and 25-spline output shaft
• Compressed length: 36.12 in.
• Neoprene boots with added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a tight seal
• High-temperature, high-torque grease for demanding driveline service
• Shafts are individually verified for straightness to help reduce vibration

Product Details

Cardone’s CV Drive Axle engineering focuses on the common failure points found in original equipment axles. The boot design uses reinforced bellows when required to help resist cracking, while precision shaft verification supports smooth operation at speed. The transmission seal diameter is machined after heat treatment to help promote proper sealing and long service life. For Nissan Cube and Nissan Versa front right axle replacement, part number 66-6253 provides a direct driveline service solution.

This part cross-references Nissan 39100ED805 and 39100EM40C for the same application.

Common Problems This Axle Can Address

• Clicking or snapping noises during hard turns and acceleration
• Grease on the chassis or suspension from a torn outer boot
• Front-end vibration caused by a worn or out-of-round axle shaft
• Grinding or binding from a damaged CV joint
• ABS warning light issues after axle replacement when the sensor ring is damaged or missing

Installation Notes

Do not let the CV axle hang unsupported during service, as this can damage the inner joint. Always replace the axle retaining nut with the supplied new nut and torque it to the manufacturer specification; do not use an impact wrench for final installation. When replacing the axle, install new transaxle seals to help prevent leaks. If the old axle is stuck in the hub, use an appropriate removal method to avoid damaging the hub or bearing.

Quality Assurance

Cardone applies testing and engineering methods developed from CV axle failure analysis to help the replacement assembly meet OE-level performance expectations. Each shaft is checked for straightness to support vibration-free operation, and the boot and grease design are selected to improve durability in real-world driveline service.
