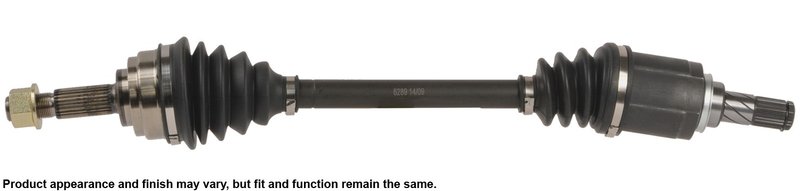

Cardone 66-6289 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Versa

Cardone 66-6289 is a new CV axle assembly engineered for front-left service on select Nissan Versa models. It is built for smooth driveline operation, with a verified straight shaft, precision-machined seal surfaces, and a complete axle design for direct replacement service.

Fits 2009-2011 Nissan Versa, front left. This application-specific axle is designed for OE-style driveline fitment and stable performance in everyday driving.

Key Features

• Fits 2009-2011 Nissan Versa, front left
• Cardone CV Axle Assembly, part number 66-6289
• ABS ring included for proper wheel speed signal operation
• Supplied with a new axle retaining nut for installation service
• 25 spline input and 25 spline output shaft connections
• Compressed length: 25.87 in.
• Neoprene boots with added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease is used for long-term joint lubrication

Product Details

Cardone 66-6289 is part of Cardone’s CV Axle Assembly line, which focuses on replacement driveline components engineered around common failure points. The axle shaft is individually checked for straightness to help maintain vibration-free operation, while the boot and seal design addresses the conditions that often lead to premature CV joint wear. For Nissan Versa front-left service, this axle provides the correct splined connections, ABS ring, and axle nut configuration needed for a clean replacement.

This part cross-references Nissan 39101EL10A for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns
• Grease leakage around the axle boot or underbody
• Front-end vibration caused by a worn or bent axle shaft
• ABS warning light after axle replacement when the sensor ring is not correct
• Grinding or thumping from a worn CV joint

Installation Notes

• Fits 2009-2011 Nissan Versa, front left only
• Do not let the CV axle hang unsupported during service
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications
• Do not reuse a prevailing-torque lock nut; install the supplied new nut
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks
• Inspect the ABS ring, sensor, and wiring during installation to avoid warning-light issues

Quality Assurance

Cardone engineers and tests CV drive axles with attention to straightness, boot durability, seal life, and driveline balance. The design approach is based on known failure modes in original CV components, with materials and construction choices made to improve service life and maintain OE-level performance expectations.
