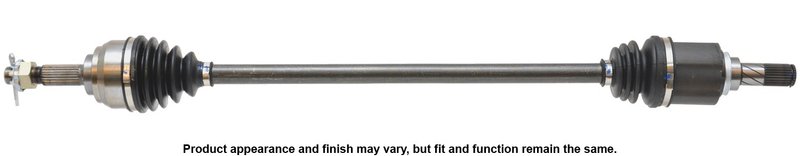

Cardone 66-6432 CV Axle Assembly - Front Right
| Brand | Cardone 66-6432 |
|---|---|
| Position | Front Right |
| ABS Ring Included | No |
| Axle Nut Locking Type | Standard |
| Compressed Length (in) | 36.142 |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 26 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 25 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Product line | CV Axle Assembly |
| Fits | Nissan · 15 vehicles |
OE performance. Engineered to meet or exceed original equipment standards.
Boots resist cracking. Neoprene construction with added bellows helps fight stress and ozone damage.
Vibration-free operation. Each shaft is individually verified for straightness.
Cross-references Nissan 391003HC0B for the same application. See all 1.
Cardone CV Axle Assembly for Nissan Versa
Cardone CV Axle Assembly 66-6432 is a new front right driveline replacement for select Nissan Versa and Nissan Versa Note applications. It is engineered for vibration-free operation, dependable seal performance, and a direct-fit installation on the listed vehicles.
Key Features
- Fits 2012-2018 Nissan Versa, front right
- Fits 2014-2016 Nissan Versa Note, front right
- Fits 2017-2019 Nissan Versa Note, front right
- Fits 2019 Nissan Versa, front right
- New axle retaining nut included for installation convenience
- Neoprene boots use added bellows where needed to reduce stress and ozone cracking
- Boot clamps are pneumatically crimped for a secure seal
- High-temperature, high-torque grease is used for long-term joint protection
- Shafts are individually verified for straightness to help reduce vibration
- Compressed length: 36.142 in.
- Splined input shaft: 26 spline; splined output shaft: 25 spline
- ABS ring not included
Product Details
Built under Cardone’s CV Drive Axle engineering process, this assembly is designed to address common failure points found in original axles, including boot cracking, seal wear, and shaft runout. The transmission seal diameter is precision-machined after heat treatment to support proper sealing and longer service life. Part number 66-6432 is a practical replacement for front right axle service on Nissan Versa and Versa Note models listed in the fitment data.
This part cross-references Nissan 391003HC0B for the same application.
Common Problems This Part Can Address
- Clicking or snapping noise during turns
- Grease leakage around the axle boot or suspension area
- Vibration during acceleration
- Grinding noise from the front end
- ABS warning light caused by damaged sensor components during axle service
Installation Notes
- Do not let the CV axle hang unsupported during service.
- Use a torque wrench on the retaining nut and follow manufacturer torque specifications.
- Do not reuse a prevailing-torque lock nut; install a new nut.
- Replace transaxle seals when servicing CV axle assemblies.
- Inspect nearby sensor rings, wiring, and hub components before final assembly.
Quality Assurance
Cardone applies axle straightness verification and CV joint engineering methods developed to improve durability and reduce repeat failure. The assembly is new and supplied with an instruction sheet for proper service on the specified Nissan Versa and Nissan Versa Note applications.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2019 | Nissan | Versa | — | Manual | — | — | Front Right | New CV Axle Assembly |
| 2019 | Nissan | Versa Note | — | Manual | — | — | Front Right | New CV Axle Assembly |
| 2018 | Nissan | Versa | — | Manual | — | — | Front Right | CV Axle Assembly |
| 2018 | Nissan | Versa | — | Automatic | — | — | Front Right | CV Axle Assembly |
| 2018 | Nissan | Versa Note | — | Manual | — | — | Front Right | New CV Axle Assembly |
| 2017 | Nissan | Versa | — | Manual | — | — | Front Right | CV Axle Assembly |
| 2017 | Nissan | Versa Note | — | Manual | — | — | Front Right | New CV Axle Assembly |
| 2016 | Nissan | Versa | — | Manual | — | — | Front Right | CV Axle Assembly |
| 2016 | Nissan | Versa Note | — | Manual | — | — | Front Right | CV Axle Assembly |
| 2015 | Nissan | Versa | — | Manual | — | — | Front Right | CV Axle Assembly |
| 2015 | Nissan | Versa Note | — | Manual | — | — | Front Right | CV Axle Assembly |
| 2014 | Nissan | Versa | — | Manual | — | — | Front Right | CV Axle Assembly |
| 2014 | Nissan | Versa Note | S | — | — | — | Front Right | CV Axle Assembly |
| 2013 | Nissan | Versa | — | Manual | — | — | Front Right | CV Axle Assembly |
| 2012 | Nissan | Versa | — | Manual | 1.6L | L4 | Front Right | CV Axle Assembly |
