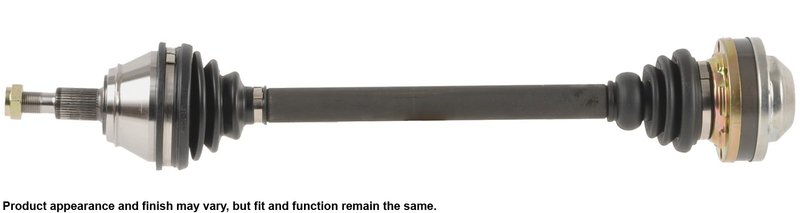

Cardone 66-7308 CV Axle Assembly - Front Right
| Brand | Cardone 66-7308 |
|---|---|
| Position | Front Right |
| ABS Ring Included | Yes |
| Axle Nut Locking Type | Self-lock |
| Compressed Length (in) | 25.7874015748031 |
| E-Waste | No |
| Input Shaft Bolt Count | 6 |
| Input Shaft Connection Style | Bolt-On |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 36 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Hex Head Size | 30mm |
| Spindle Nut Included | Yes |
| Spindle Nut Thread Size | M20 x 1.5 |
| Product line | CV Axle Assembly |
| Fits | Audi · 2 vehicles |
OE performance. Engineered to meet or exceed original equipment standards.
Vibration-free operation. Each axle shaft is individually verified for straightness.
Complete axle. Includes an instruction sheet for a straightforward install.
Cross-references Audi 1J0407272FL, Audi 1J0407272KR and Audi 1J0407452LX for the same application. See all 3.
Cardone CV Axle Assembly for Audi TT Quattro
Cardone 66-7308 is a new CV axle assembly engineered for front right applications on the 2000 Audi TT Quattro and 2001 Audi TT Quattro from chassis # 8N-1-046 001. Built for driveline service, it is designed to restore smooth power transfer and consistent axle operation in Audi TT Quattro front right replacement jobs.
Key Features
- New CV axle assembly for front right driveline service
- ABS ring included for proper sensor signal integration
- Self-lock axle nut style with spindle nut included
- Precision-verified shaft straightness for vibration-free operation
- Neoprene boots with added bellows where needed to resist stress and ozone cracking
- High-temperature, high-torque grease for long-lasting joint performance
- Boot clamps are pneumatically crimped for a secure seal
- Transmission seal diameter is precision-machined after heat treatment for improved seal life
Product Details
Cardone applies its CV axle engineering and testing experience to this replacement axle assembly, focusing on the failure points that commonly affect original units. The shaft is individually checked for straightness, helping reduce vibration at speed, while the boot and grease package are selected to support durable joint operation under driveline load. For Audi TT Quattro owners searching for a front right CV axle assembly, Cardone 66-7308 provides a direct-fit service part for the listed applications.
This part cross-references Audi 1J0407272FL and 1J0407272KR for the same application.
What It Helps Fix
- Clicking or snapping noises during turns
- Grease leakage around the axle boot or suspension area
- Front-end vibration caused by a bent or out-of-runout axle shaft
- ABS warning light issues related to axle sensor ring damage
- Grinding or binding from a worn outer or inner CV joint
Installation Notes
Fits 2000 Audi TT Quattro, front right. Fits 2001 Audi TT Quattro, front right, from chassis # 8N-1-046 001. Do not let the CV axle hang unsupported during service, and do not reuse the old prevailing-torque lock nut. Install the axle nut with a torque wrench and tighten to the manufacturer specification. When replacing the axle, install new transaxle seals to help prevent leaks.
Quality Assurance
Cardone verifies CV axle shafts for straightness and uses engineering methods aimed at reducing repeat failure. The assembly is built with attention to boot sealing, seal surface finish, and driveline balance-related concerns to support reliable OE-style performance in Audi TT Quattro applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Audi | TT Quattro | 1.8L | L4 | Front Right | From Chassis # 8N-1-046 001; CV Axle Assembly |
| 2000 | Audi | TT Quattro | 1.8L | L4 | Front Right | CV Axle Assembly |
