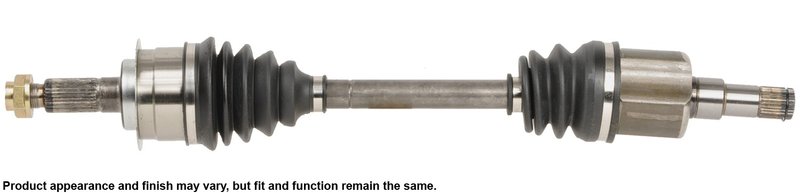

Cardone 66-7389 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Suzuki SX4

Restore smooth driveline operation with this Cardone CV Axle Assembly, part number 66-7389. It is built for the front left position on 2007-2009 Suzuki SX4 models and is engineered to address common causes of CV axle failure while supporting vibration-free performance.

Cardone CV Drive Axle engineering focuses on fit, durability, and consistent operation for Suzuki SX4 front left axle replacement needs. This assembly includes an ABS ring, a new spindle nut, and a complete axle with instruction sheet for a direct-service replacement.

Key Features

• Fits 2007-2009 Suzuki SX4, front left
• Part number 66-7389
• ABS ring included for proper wheel speed signal operation
• New spindle nut included with M22 x 1.5 thread and 32mm hex head size
• Splined input shaft with 26 splines and splined output shaft with 28 splines
• Neoprene boots use added bellows where needed to resist stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease supports long service life
• Shafts are individually verified for straightness to reduce vibration

Product Details

This Cardone CV axle assembly is designed for the front left side of the Suzuki SX4 and is built around the failure points commonly seen in original CV axles. Cardone uses engineering and testing experience to improve boot durability, seal integrity, and shaft straightness, helping the axle deliver stable operation at speed. The compressed length is 24.2126 in, and the transmission seal diameter is precision-machined after heat treatment to support proper sealing and long seal life. Part number 66-7389 is also a direct reference for Suzuki 4410280J50.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns and acceleration
• Grease leakage around the axle boot or underbody
• Front-end vibration caused by axle runout or shaft imbalance
• ABS warning light concerns after axle replacement when the sensor ring is damaged or missing
• Grinding or wobble from a worn outer CV joint

Installation Notes and Tips

• Do not let the CV axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the spindle nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; install the new nut supplied with the axle.
• Inspect transaxle seals and replace them if they show wear or leakage.
• Verify ABS sensor, wiring, and ring condition before final assembly.

Quality Assurance

Cardone designs its CV Drive Axles to meet or exceed original equipment performance targets through application-specific engineering, boot design improvements, and 100% shaft straightness verification. The result is a replacement axle built for consistent driveline operation on the Suzuki SX4. Part number 66-7389 is manufactured as a new component.
