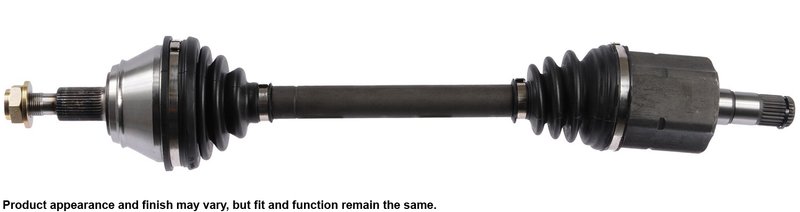

Cardone 66-7449 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Volkswagen Beetle

Cardone 66-7449 is a new CV axle assembly engineered for front left applications on select Volkswagen Beetle and Beetle Cabrio models. It is built with a splined input and output connection, an included ABS ring, and a self-lock axle nut for a direct replacement on the specified vehicles.

For drivers searching for a front left CV axle for 2006-2010 Volkswagen Beetle or a 2010 Volkswagen Beetle Cabrio front left axle assembly, this part is designed to restore smooth driveline operation and consistent wheel-speed signal performance.

Key Features

• Brand: Cardone CV Axle Assembly, part number 66-7449
• Fits 2006-2010 Volkswagen Beetle, front left
• Fits 2010 Volkswagen Beetle Cabrio, front left
• ABS ring included for vehicles using wheel-speed sensing at the axle
• Self-lock axle nut style with 30mm hex head size and M20 x 1.5 thread
• Compressed length: 23.875 in.
• 26-spline input shaft and 36-spline output shaft
• New axle retaining nut supplied
• Neoprene boot design with added bellows where needed to reduce stress and cracking
• Precision-verified shaft straightness for vibration-free operation

Product Details

Cardone’s CV axle engineering focuses on the common failure points found in original drive axles, including boot cracking, contamination, and shaft runout. The boot design uses neoprene construction with additional bellows when required to help resist ozone cracking and flex fatigue, while the shaft is individually checked for straightness to help maintain smooth operation at speed. High-temperature grease and pneumatically crimped boot clamps support long-term joint sealing and consistent performance. This part cross-references Volkswagen 1J0407271QA for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns and acceleration
• Grease leakage around the axle boot or suspension area
• Front-end vibration caused by axle runout or shaft imbalance
• ABS warning light triggered by a damaged sensor ring or axle-related sensor issue
• Thumping or driveline vibration under load from a worn CV joint

Installation Notes

• Fits 2006-2010 Volkswagen Beetle, front left, and 2010 Volkswagen Beetle Cabrio, front left.
• Do not let the CV axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; install the supplied new axle nut.
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone builds this CV axle assembly using engineering and testing methods developed from CV drive axle failure analysis. Each shaft is verified for straightness, and the assembly is designed to meet or exceed original equipment performance expectations for the listed Volkswagen applications.
