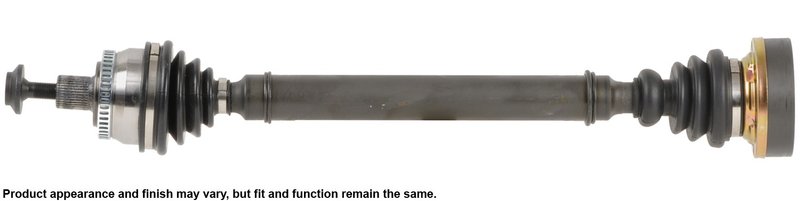

Cardone 66-7461 CV Axle Assembly - Rear Left or Rear Right

Cardone CV Axle Assembly for Audi A6 Quattro

Cardone CV Axle Assembly 66-7461 is a new driveline replacement built for rear axle service on select Audi A6 Quattro applications. It is engineered with attention to shaft straightness, boot durability, and seal integrity to support smooth operation in daily driving and under load.

Key Features

• Fits 2000 Audi A6 Quattro, rear left and rear right, with 17-inch, 18-inch, or 19-inch wheels as listed
• Fits 2001-2004 Audi A6 Quattro, rear left and rear right
• ABS ring included with 45 teeth for proper speed signal operation
• New spindle nut included; axle nut locking type is bolt
• Output shaft spline count: 38; input shaft bolt count: 6; bolt-on input connection
• Neoprene boots use added bellows where needed to resist stress and cracking
• Boot clamps are pneumatically crimped for a tight seal
• High-temperature grease is used for demanding torque and heat conditions
• Transmission seal diameter is precision-machined after heat treatment for consistent sealing
• Part number 66-7461

Product Details

Cardone designs its CV Drive Axles around common failure points found in original units, including boot cracking, seal wear, and vibration from shaft runout. Each shaft is individually checked for straightness to help deliver vibration-free performance at speed. For Audi A6 Quattro rear axle service, 66-7461 provides a direct replacement solution that supports ABS function and driveline smoothness.

This part cross-references Audi 4B0501203C and 4B0501203CX for the same application. The Cardone CV Axle Assembly line focuses on OE-style driveline replacement parts engineered for consistent fit, sealing, and joint performance.

Common Problems This Part Addresses

• Clicking or snapping during hard turns
• Grease on the chassis or suspension from a torn CV boot
• Vibration or thump under acceleration
• ABS warning light after axle replacement due to sensor ring or wiring damage
• Grinding noise from the front or rear driveline area caused by joint wear

Installation Notes

• Do not let the CV axle hang unsupported during service; this can damage the inner joint
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification
• Do not reuse a prevailing-torque lock nut; install the new nut supplied with the unit
• Replace transaxle seals when servicing CV drive axles to help prevent leaks
• Inspect the ABS sensor, ring, and wiring during installation to avoid false warning lights

Quality Assurance

Cardone applies testing and engineering methods developed from CV axle remanufacturing experience to produce a new axle assembly that meets OE-level performance targets. The design includes verified shaft straightness, improved boot construction, and precision-machined sealing surfaces to support reliable operation on Audi A6 Quattro rear axle applications.
