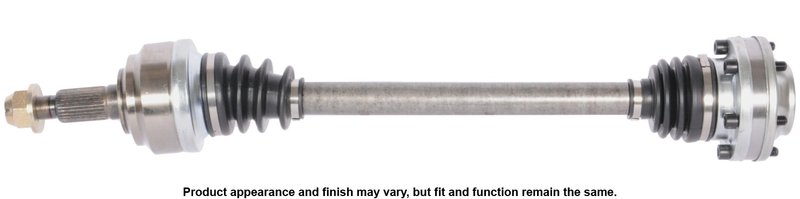

Cardone 66-7507 CV Axle Assembly - Rear Left or Rear Right
| Brand | Cardone 66-7507 |
|---|---|
| Position | Rear Left |
| ABS Ring Included | No |
| ABS Ring Tooth Count | 0 |
| Axle Nut Locking Type | Self-Lock |
| Compressed Length (in) | 28.54 |
| E-Waste | No |
| Input Shaft Bolt Count | 6 |
| Input Shaft Connection Style | Bolt-On |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 30 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Product line | CV Axle Assembly |
| Fits | Volkswagen · 20 vehicles |
OE performance. Engineered to meet or exceed original equipment standards.
Boots resist cracking. Additional bellows help fight stress and ozone damage.
Straightness verified. Each shaft is checked for vibration-free operation.
Cross-references Volkswagen 7L0501201A and Volkswagen 7L0501201C for the same application. See all 2.
Cardone CV Axle Assembly for Touareg
Cardone 66-7507 is a new CV axle assembly engineered for rear applications on select Volkswagen Touareg models. It is built to address common axle failure points with verified shaft straightness, precision sealing surfaces, and boot construction focused on durability and smooth operation.
Key Features
- Fits 2004-2010 Volkswagen Touareg, rear right and rear left, including locking differential applications
- New axle retaining nut included for service convenience
- Neoprene boots with added bellows where needed to reduce stress and cracking
- High-temperature, high-torque grease for demanding driveline conditions
- Boot clamps are pneumatically crimped for a secure boot-to-housing seal
- Shafts are individually checked for straightness to help reduce vibration
- Spindle nut included; ABS ring not included
- Cardone 66-7507 cross-references Volkswagen 7L0501201A and 7L0501201C
Product Details
This Cardone CV axle assembly is designed for rear driveline service on the Volkswagen Touareg, with coverage for 2004-2005 rear left and rear right, plus 2004-2010 rear left and rear right models equipped with a locking differential. The Cardone CV Axle Assembly line focuses on OE-style performance by addressing common causes of repeat failure, including boot cracking, seal wear, and shaft runout. Part number 66-7507 is a direct replacement choice for technicians and owners looking for a rear Volkswagen Touareg CV axle assembly with the correct spline and bolt-on connection details.
What It Can Help Fix
- Clicking or snapping noises during turns
- Grease leakage around the axle boot or chassis
- Vibration caused by axle runout or shaft imbalance
- Thumping or driveline shudder under acceleration
- Rear axle wear related to damaged boots or contaminated joints
Installation Notes
- Fits 2004-2010 Volkswagen Touareg, rear right and rear left, with locking differential on applicable vehicles
- Do not let the CV axle hang unsupported during service
- Use a torque wrench for the retaining nut and follow manufacturer torque specifications
- Replace the old prevailing-torque nut rather than reusing it
- Install new transaxle seals when replacing CV drive axle assemblies
Quality Assurance
Cardone engineers CV drive axles to meet or exceed original equipment performance targets through application-focused testing and inspection. Shafts are verified for straightness, and sealing surfaces are precision-machined after heat treatment to support long seal life and consistent driveline operation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Volkswagen | Touareg | — | — | Rear Right | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2010 | Volkswagen | Touareg | — | — | Rear Left | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2009 | Volkswagen | Touareg | — | — | Rear Right | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2009 | Volkswagen | Touareg | — | — | Rear Left | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2008 | Volkswagen | Touareg | — | — | Rear Right | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2008 | Volkswagen | Touareg | — | — | Rear Left | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2007 | Volkswagen | Touareg | — | — | Rear Right | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2007 | Volkswagen | Touareg | — | — | Rear Left | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2006 | Volkswagen | Touareg | — | — | Rear Right | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2006 | Volkswagen | Touareg | — | — | Rear Left | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2005 | Volkswagen | Touareg | 3.2L | V6 | Rear Left | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2005 | Volkswagen | Touareg | 4.2L | V8 | Rear Left | CV Axle Assembly |
| 2005 | Volkswagen | Touareg | 3.2L | V6 | Rear Right | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2005 | Volkswagen | Touareg | 5.0L | V10 | Rear Left | CV Axle Assembly |
| 2005 | Volkswagen | Touareg | 5.0L | V10 | Rear Right | CV Axle Assembly |
| 2005 | Volkswagen | Touareg | 4.2L | V8 | Rear Right | CV Axle Assembly |
| 2004 | Volkswagen | Touareg | 4.2L | V8 | Rear Left | CV Axle Assembly |
| 2004 | Volkswagen | Touareg | 3.2L | V6 | Rear Right | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2004 | Volkswagen | Touareg | 3.2L | V6 | Rear Left | with Locking Differential; Locking Differential is Identified by a Tag on the Transmission; CV Axle Assembly |
| 2004 | Volkswagen | Touareg | 4.2L | V8 | Rear Right | CV Axle Assembly |
